Automated Granite Carving Machine

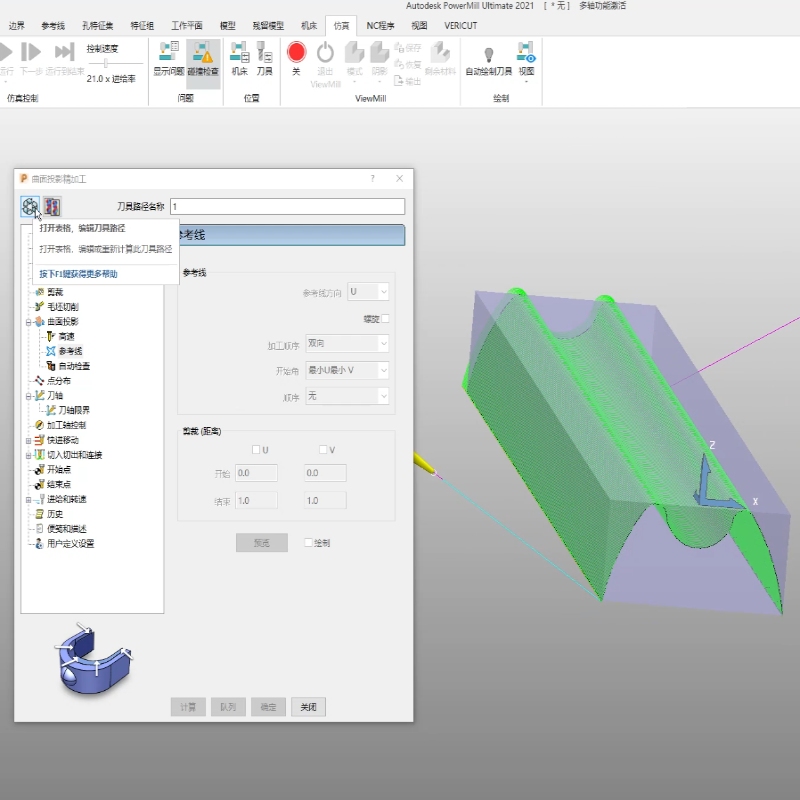

Many first-time CNC stone machine buyers ask the same question:  "How does the machine know where to carve?"   The answer is simple: the machine doesn't think by itself. Every movement comes from a toolpath created by CAD/CAM software before machining begins.   A toolpath is essentially a detailed set of instructions that tells the CNC machine: Where to start Which direction to move How deep to cut Which tool to use When the carving is finished Without a correctly generated toolpath, even the most advanced CNC stone carving machine cannot produce accurate results.   This article explains how a stone carving toolpath is created, what information it contains, and why choosing the correct cutting tool is just as important as the design itself.   What Is a CNC Toolpath? Think of a toolpath as a GPS navigation system for your CNC machine. Just as GPS guides a driver turn by turn, a toolpath guides the spindle point by point.   Instead of saying "Turn left in 100 meters," it tells the machine things like: Move to X150 Y300 Lower the tool to Z-5 mm Follow this curve Raise the tool Move to the next carving area Every motion of the spindle is already planned before machining starts. The controller simply follows these instructions with high precision.   The Complete Toolpath Creation Process Creating a stone carving toolpath usually involves five major steps.   Step 1 — Import or Create the Design Everything begins with the artwork.   Depending on your project, you can: Import a photo Scan an existing drawing Create artwork manually Design a relief model in JDpaint For relief carving, the software converts the image into a grayscale height model.   Generally speaking: Dark areas become deeper carving Light areas remain higher Gray levels create smooth transitions This height information becomes the basis for the machining path.   Step 2 — Select the Correct Cutting Tool The software must know exactly which tool will be installed on the machine.   Typical stone carving tools include: Flat End Mill Ball Nose Cutter V-Bit Diamond Stone Tool   Important parameters include: Tool diameter Tool type Tool length Cutting angle (if applicable) If the software assumes a 6 mm ball nose cutter while the machine actually uses a 10 mm flat tool, the finished carving will not match the design. One incorrect parameter can affect the entire project.   Step 3 — Generate the Toolpath Once the design and tool information are ready, the CAM software calculates the machining path automatically.   During calculation, the software determines: Tool movement direction Step-over distance Cutting depth Machining sequence Safe travel height The generated toolpath appears as hundreds—or even thousands—of lines. Each line represents one movement of the cutting tool.   Generally: Smaller step-over = smoother surface Larger step-over = faster machining More toolpath lines = higher detail but longer production time Finding the right balance depends on the material and required finish quality.   Step 4 — Export the Toolpath After verification, the machining data is exported. Many stone CNC machines using the NcStudio control system save machining programs in ENG format.   The workflow is straightforward: Save the ENG file Copy it to a USB drive Insert the USB into the CNC controller Load the file Start machining At this point, the controller has everything it needs to execute the job.   Step 5 — Execute the Carving When machining begins, the CNC controller reads every instruction inside the ENG file.   The spindle follows the programmed coordinates precisely while maintaining the specified cutting depth.   The operator monitors the process and can adjust cutting conditions if necessary.   Although the path itself is fixed, machining parameters can still be optimized during production.   What Information Does an ENG Toolpath File Contain? An ENG machining file stores much more than simple coordinates.   Typical information includes: Data Purpose X/Y coordinates Tool movement position Z-axis depth Cutting depth Machining sequence Order of operations Safe height Collision avoidance Feed instructions Tool movement control Unlike the design drawing, the ENG file tells the machine how to manufacture the design, not just what it should look like.   Where Are Feed Rate and Spindle Speed Set? Many beginners assume these values are permanently stored inside the toolpath. In reality, experienced operators often adjust them during machining.   The NcStudio controller allows real-time adjustment through override controls.   Typical operating principles include: Material or Operation Recommended Adjustment Granite Lower feed rate, stable cutting Marble Medium feed rate Sandstone Higher feed rate Roughing Faster feed Finishing Slower feed for better surface quality The best settings depend on: Stone hardness Tool condition Spindle power Cooling performance Surface finish requirements Experienced operators listen to the cutting sound and observe chip removal, making small adjustments as needed.   Common Toolpath Mistakes Beginners Make Many machining problems originate before the machine even starts.   The most common mistakes include: Selecting the wrong tool diameter Forgetting to update tool information Setting incorrect workpiece thickness Choosing excessive cutting depth Using finishing parameters for rough machining Skipping toolpath simulation before machining Most of these issues can be avoided with a careful pre-machining inspection.   Toolpath Creation Workflow Step Operation Purpose Step 1 Import or Create the Design Prepare the carving model from a photo, drawing, or 3D file. Step 2 Select the Cutting Tool Match the software settings with the actual cutter installed on the machine. Step 3 Generate the Toolpath Calculate every movement, cutting depth, and machining path. Step 4 Export the ENG File Save the toolpath as an ENG file and copy it to a USB drive. Step 5 Load into the Controller Open the file in the Weihong system and begin machining.   Final Thoughts A CNC stone carving machine is only as accurate as the toolpath it follows.   Creating a high-quality toolpath requires more than simply importing a design—it involves selecting the correct cutting tool, generating an optimized machining strategy, verifying the output, and adjusting machining parameters based on the material being processed.   Understanding this workflow helps operators reduce errors, improve carving quality, extend tool life, and maximize machine efficiency. Whether you're producing relief panels, sculptures, countertops, or memorial stones, mastering toolpath generation is one of the most valuable skills in CNC stone machining.
