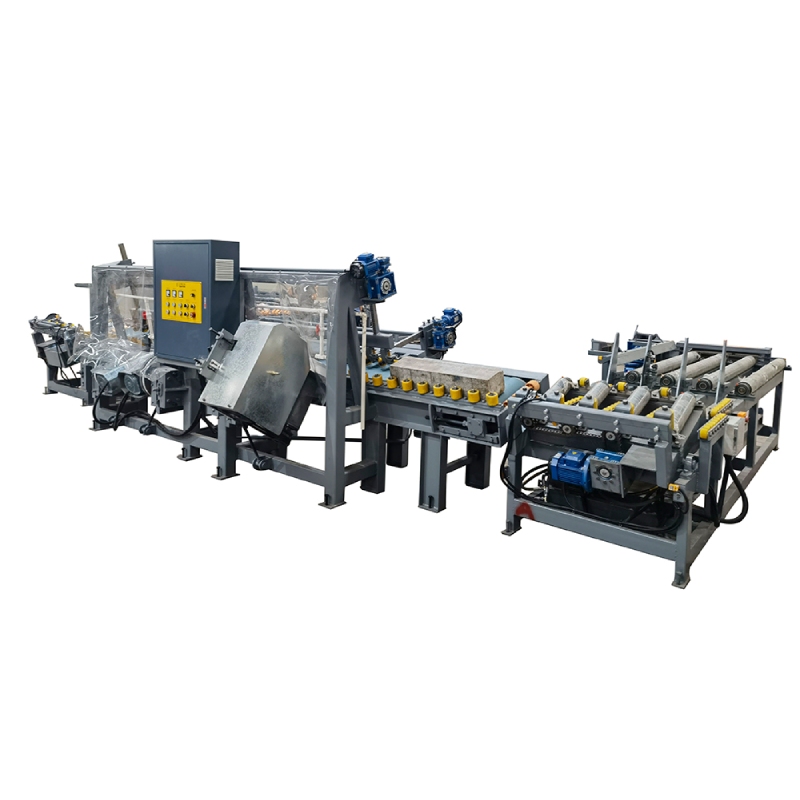

JZ-ZD400 Stone Curb Chamfering Machine is a specialized automatic processing equipment designed for curb stone chamfering, edge grinding, and profile finishing. Equipped with a cutting blade and multiple grinding heads, it can efficiently process granite, marble, and other stone materials with precise chamfered edges and smooth surfaces.
Product Model :
JZ-ZD400Certification :
CE,ISOSpecifications :
7400*2400*2000mmOrigin :
QuanzhouPort :
JinzuanSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

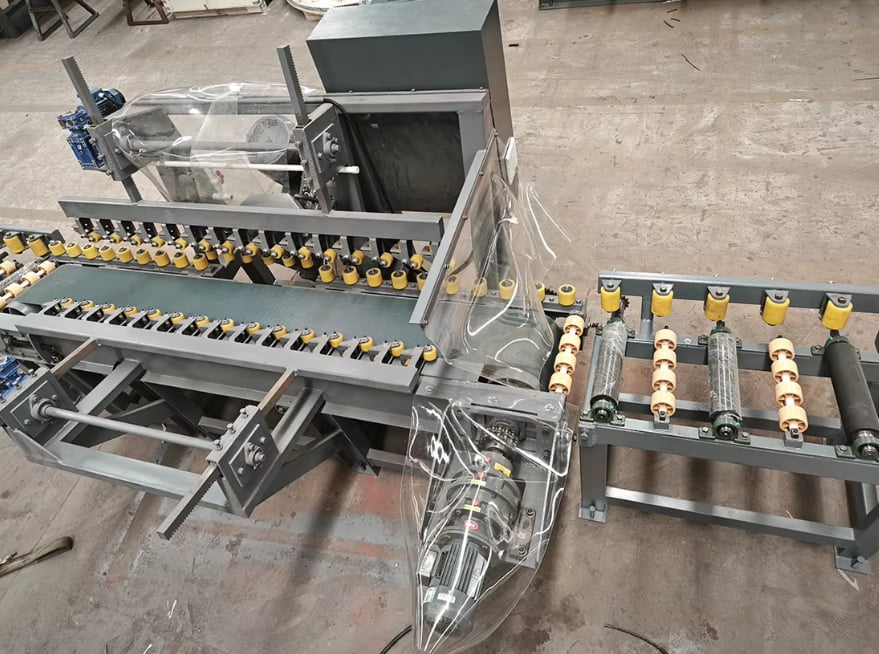

The JZ-ZD400 Automatic Stone Curb Chamfering Machine combines stone cutting, chamfer grinding, and edge profiling functions into one integrated system. The machine adopts a Ø350/400mm diamond blade for accurate stone trimming and 1+2 grinding heads with Φ150~200mm grinding discs for continuous edge refinement, greatly improving processing efficiency compared with traditional manual grinding methods.
Designed for industrial stone fabrication workshops, highway construction suppliers, and municipal stone processing projects, the JZ-ZD400 can handle curb stones up to 1200×500×300mm with customized chamfer sizes from 10mm to 50mm. Its stable structure, 5-ton machine body, and powerful 11+7.5×2kW motor system ensure reliable performance for long-term production of granite curbs, paving stones, and decorative edge products.
Core Features
1. Integrated Chamfering And Grinding System: Complete Edge Processing In One Machine
Combines diamond blade cutting and multi-head grinding technology to complete curb stone trimming, chamfering, and surface refinement in a continuous workflow.
2. Adjustable Chamfer Size Capability: Flexible Edge Design For Different Projects
Supports chamfer sizes from 10mm to 50mm, with customized dimensions available according to customer requirements. Suitable for producing different roadside curb profiles, landscaping borders, and architectural stone edges.
3. Multi-Head Grinding Structure: Smooth Radius And Professional Finishing Results
Equipped with 1+2 grinding heads using Φ150×R20 to Φ200×R50 grinding discs for radius grinding and edge polishing.
4. High Processing Accuracy: Stable Performance For Standardized Stone Production
Handles maximum processing sizes up to 1200×500×300mm, meeting common specifications for granite and marble curb stones. The rigid 5-ton machine structure minimizes vibration during cutting and grinding, helping maintain consistent edge quality.
5. Efficient Industrial Production: Reduces Labor Dependency
Compared with traditional hand-held grinders, the automatic processing system improves working efficiency and reduces operator skill requirements.
Technical Parameters
| Blade Diameter | Ø350/400mm | ||||||
| Grinding disc size | Φ150*R20~Φ200*R50mm | ||||||
| Number of heads | 1+2 pcs | ||||||
| Max. cutting length | 1200mm | ||||||
| Max. cutting size (L*W*H) | 1200*500*300mm | ||||||
| Maximum chamfer size | 10-50mm（can be customized） | ||||||
| Max. grinding size | R50 | ||||||
| Main motor power | 11+7.5*2kw | ||||||
| Weight | 5t | ||||||
| Overall dimensions (L*W*H) | 7400*2400*2000mm | ||||||
Applications
Why Choose JZ-ZD400 Curb Stone Chamfering Machine?
| Processing Comparison | Traditional Processing Method | JZ-ZD400 Curb Stone Chamfering Machine |
|---|---|---|
| Processing Steps | Requires separate cutting, grinding, and edge finishing operations | Combines cutting, chamfering, and radius grinding in one workflow |
| Edge Quality | Quality depends on operator experience and manual skills | Produces uniform chamfer edges and stable R-angle finishing |
| Production Efficiency | Longer processing time due to repeated handling | Continuous processing improves production capacity |
| Chamfer Adjustment | Difficult to keep the same size for different batches | Adjustable chamfer size from 10-50mm for various requirements |
| Labor Cost | Requires experienced workers for manual grinding | Reduces manual grinding workload and improves operation efficiency |
| Product Consistency | Different workers may create different edge results | Suitable for standardized batch production |
Expert Q&A
Q1: Can this machine replace manual curb stone grinding?
A: Yes. Compared with manual angle grinders, JZ-ZD400 provides automated cutting and grinding operations, improving processing speed, edge consistency, and production stability.
Q2: Why does curb stone need chamfering before installation?
A: Chamfering removes sharp edges, improves safety, enhances appearance, and helps curb stones achieve better durability during transportation and outdoor installation.
Q3: Can the grinding radius be customized?
A: Yes. The machine supports radius grinding up to R50, and different edge profiles can be customized according to customer requirements.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
