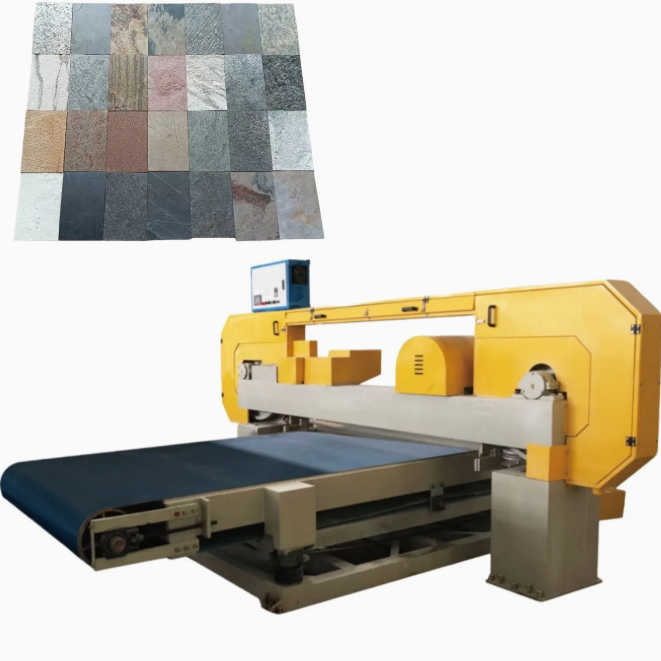

High Efficiency Stone Splitting Machine for Precise Block Cutting
This stone splitting machine is designed for precise and efficient slab cutting using a high-speed band saw system. It delivers stable performance, consistent thickness control, and smooth cutting surfaces, making it ideal for processing marble, granite, and engineered stone.
Product Model :
YCDP-1400Certification :
CE, ISOSpecifications :
3400x5000x2200mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year
The Industrial Stone Splitting Machine (Band Saw Type) is engineered for high-precision stone slab processing, featuring a CNC-controlled band saw cutting system, automatic thickness adjustment, and constant-pressure blade tensioning. With a cutting speed of up to 80 m/min, this machine ensures fast throughput while maintaining cutting accuracy and surface quality.
This machine is widely used in stone slab splitting, tile production, and decorative panel processing, offering an ideal balance between efficiency, precision, and operating cost.
Core Features
1). High-Speed Band Saw Cutting System: Cutting speed ranges from 0–80 m/min, allowing flexible adjustment for different stone hardness and thickness.
2). Precision Thickness Control: Supports automatic slice thickness adjustment, ensuring consistent slab thickness (≤80 mm) with minimal deviation.
3). Large Cutting Capacity: Handles materials up to 1400 mm width and 2500 mm length, suitable for medium to large stone blocks.
4). CNC Constant Pressure Blade Tensioning: Maintains stable blade force during long working hours, reducing blade deviation and improving cutting accuracy.
5). Heavy-Duty Structure: Built with Q235 steel frame + stainless steel panels, ensuring durability under continuous industrial operation.
6). Efficient Cooling & Water System: Water consumption at 1 m³/h effectively reduces blade temperature and extends tool lifespan.
7). Low Maintenance Design: Band saw blade thickness of 0.9 mm reduces material loss and operating costs.
Technical Parameters
| Band saw machine dimensions | 3400x5000x2200 mm | |||||||
| Cutting width | <1400 mm | |||||||
| Cutting length | <2500 mm | |||||||
| Cutting thickness | <80 mm | |||||||
| Cutting speed | 0-80m/min | |||||||
| Band Saw Blade Thickness | 0.9 mm | |||||||
| Tooth Tip Thickness | 2.5mm | |||||||
| Installed power | 12.67 KW | |||||||
| Body weight | 3.2T | |||||||
| Water consumption | 1³/h | |||||||
| Frame material | Q235 | |||||||
| Sheet metal materials | Stainless steel | |||||||
| Shifter | Delta (Taiwan) | |||||||
| PLC | Coolmay(Shenzhen) | |||||||
| Encoder | 128 | |||||||
| Reducer | Suborel(Zhejiang) | |||||||
| Motor | Pinyi(Zhejiang) | |||||||
| Voltage | 380V/50Hz | |||||||
| Control electrical appliances | Delixi(Zhejiang) | |||||||
| Slice thickness adjustment | automatic | |||||||
| Platform conveying method | PVC belt | |||||||
| Saw blade tensioning method | CNC constant pressure | |||||||
| Frame structure | Horizontal | |||||||
| Flywheel diameter | 1000 mm | |||||||
| Lifting method | workbench | |||||||
Applications
1). Stone Slab Splitting Factories: Ideal for continuous splitting of granite, marble, and artificial stone slabs into uniform thickness panels.
2). Tile Manufacturing Lines: Used for cutting large slabs into smaller tiles for flooring, wall cladding, and decoration.
3). Decorative Stone Processing: Suitable for producing thin decorative panels used in interior and exterior architectural projects.
4). Tombstone & Monument Industry: Enables efficient preparation of stone blanks before engraving or polishing.
Comparison Analysis (For Buyer Decision)
Band Saw Splitting Machine vs Circular Blade Cutting Machine
1. Cutting Loss
Band Saw: thinner blade (0.9 mm), less material waste
Circular Blade: thicker blade, higher material loss
2. Surface Finish
Band Saw: smoother surface, less secondary polishing required
Circular Blade: rougher surface
3. Energy Efficiency
Band Saw: lower power consumption for thin cutting
Circular Blade: higher energy usage
4. Best Use Case
Band Saw: thin slab splitting and precision cutting
Circular Blade: heavy block cutting
Expert Q&A
1. What types of stone can this machine process?
This machine is suitable for granite, marble, limestone, and engineered stone, especially for slab splitting applications.
2. How does the machine ensure cutting accuracy?
The combination of CNC control, constant blade tension, and stable frame structure ensures consistent cutting thickness and minimal deviation.
3. What is the maximum cutting thickness?
The machine supports cutting thickness up to 80 mm, with automatic adjustment for precise control.
4. Is the machine suitable for continuous operation?
Yes, with a 12.67 kW power system and industrial-grade components, it can operate continuously in factory environments.
5. How often does the band saw blade need replacement?
Blade lifespan depends on material hardness and usage, but the thin blade design reduces wear and lowers replacement costs.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
The Gantry Type Double-Cylinder Computerized Profiling Machine is a high-precision, industrial-grade equipment tailored exclusively for stone processing industries.
Read More
This gantry-type stone drilling machine is engineered for precise and efficient drilling of large stone blocks. With a robust structure, 800mm vertical stroke, and powerful 11–15kW motor, it ensures stable performance even under heavy-duty conditions. Ideal for granite, marble, and engineered stone processing, it delivers consistent accuracy and high productivity.
Read More

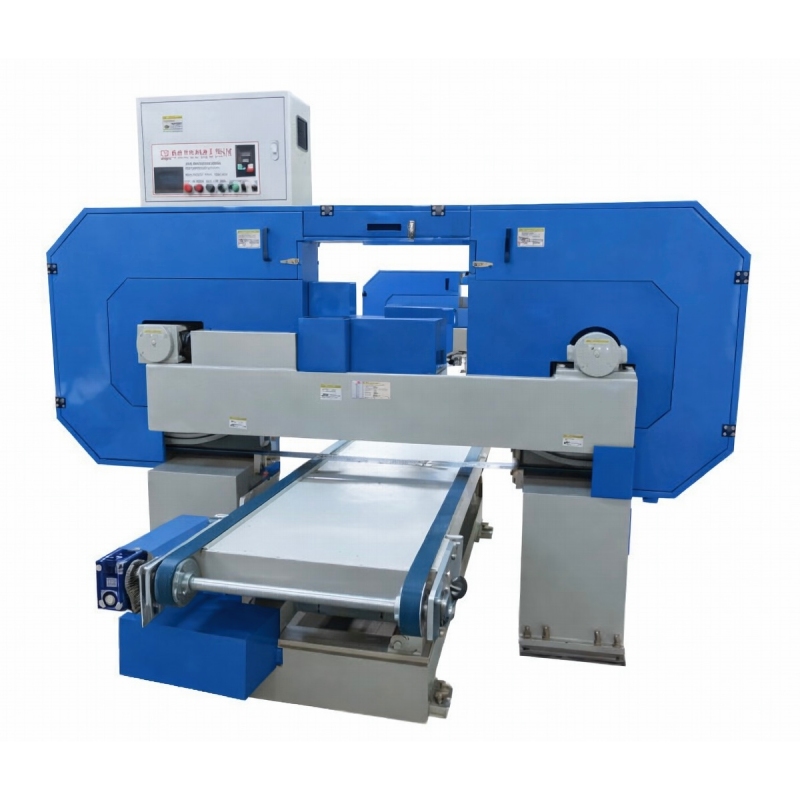

This stone splitting machine is designed for precise and efficient slab cutting using a high-speed band saw system. It delivers stable performance, consistent thickness control, and smooth cutting surfaces, making it ideal for processing marble, granite, and engineered stone.
Read More

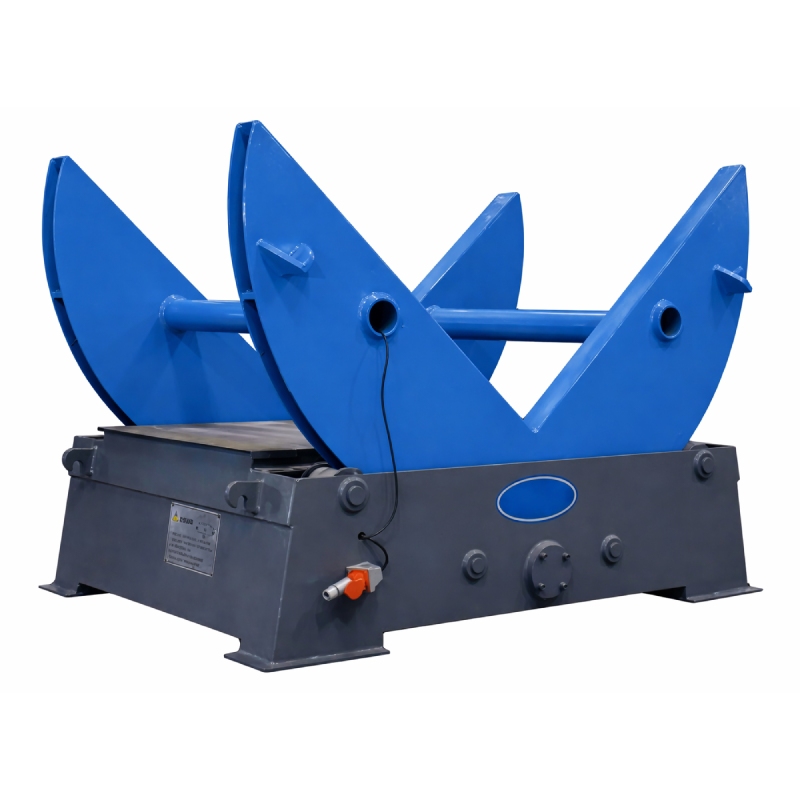

Our Stone Flipping Machine is engineered for efficient handling of heavy stone blocks up to 65 tons. Equipped with adjustable turning angles and powerful motors, it ensures precise and safe flipping for processing marble, granite, and other natural stones. Ideal for quarries, stone factories, and cutting workshops.
Read More

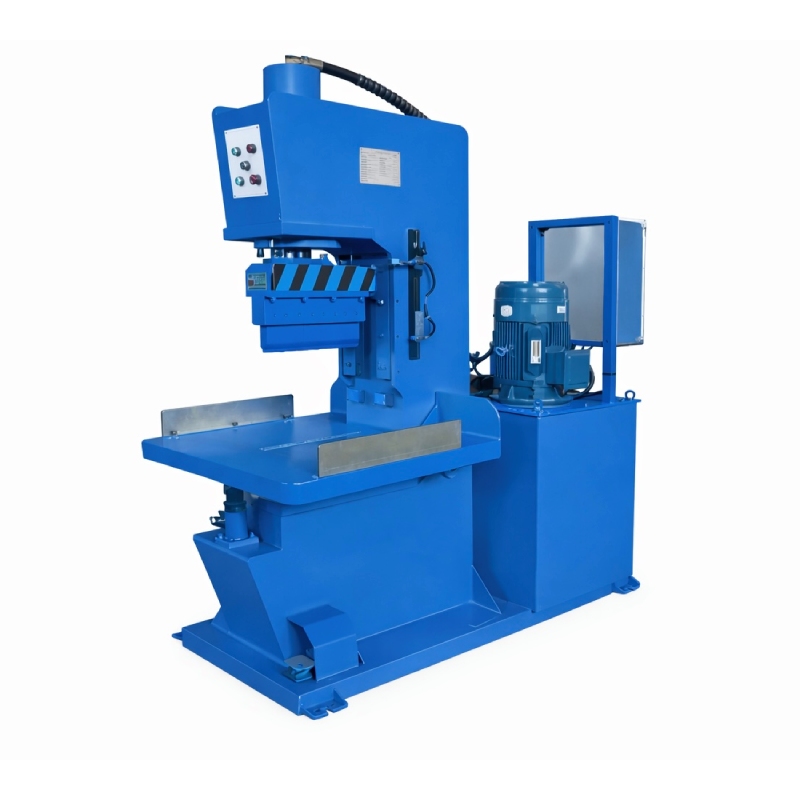

The Natural Surface Stone Splitting Machine is designed to process stone blocks into rough, natural-faced slabs with high efficiency and consistent quality. It is widely used in construction stone production, wall cladding, and landscaping materials manufacturing. With stable hydraulic force and precision control, it ensures uniform splitting results even under continuous operation.
