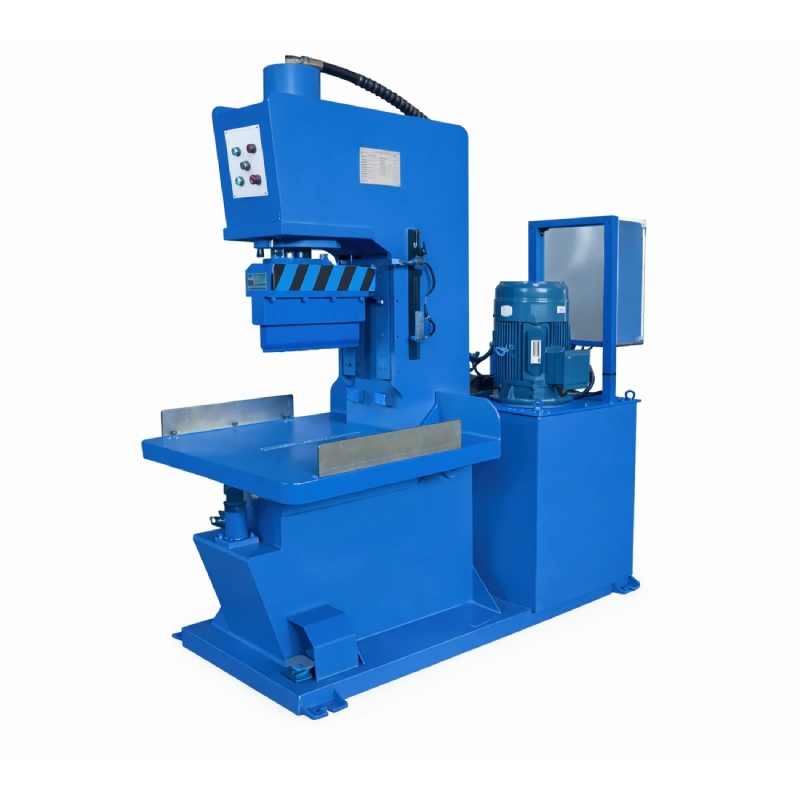

Hydraulic Stone Splitting Machine for Natural Surface Stone Processing
The Natural Surface Stone Splitting Machine is designed to process stone blocks into rough, natural-faced slabs with high efficiency and consistent quality. It is widely used in construction stone production, wall cladding, and landscaping materials manufacturing. With stable hydraulic force and precision control, it ensures uniform splitting results even under continuous operation.
Product Model :
KSD-95hCertification :
CE, ISOSpecifications :
2000 × 1000 × 2150 mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

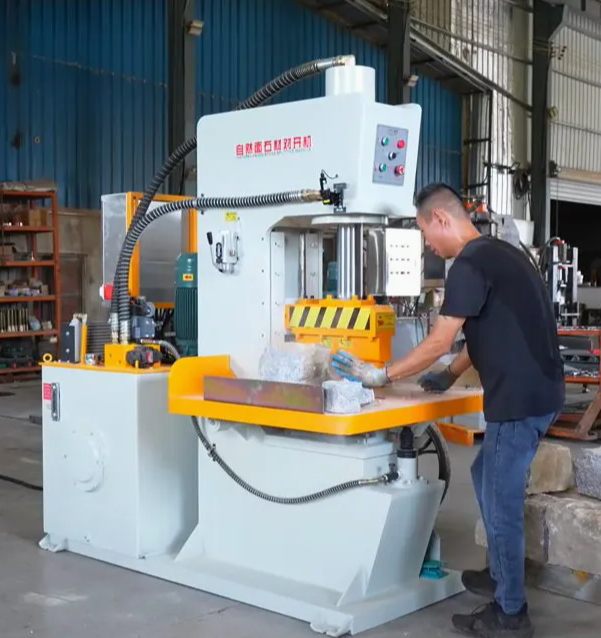

Our Hydraulic Natural Stone Splitting Machine is engineered for professional stone manufacturers seeking high-output natural face processing with minimal manual intervention. Equipped with an 11KW hydraulic system, precise blade feeding control, and reinforced structural frame, the machine ensures uniform splitting quality even during long-hour industrial production.
Key advantages include:
Stable splitting performance under continuous operation
Reduced labor intensity and operating cost
Consistent natural surface appearance
Optimized for export-oriented stone factories
Core Features
1). 80T Hydraulic Splitting Force: Generates powerful and uniform pressure, enabling clean natural fractures without damaging stone integrity.
2). High Production Efficiency — Up to 70㎡/Hour: Designed for industrial-scale manufacturing where output consistency directly affects profitability.
3). Precision Blade Feeding System (15 cm/s): Ensures stable feeding speed, reducing irregular cracks and improving finished product yield rate.
4). Heavy-Duty Machine Structure: Net Weight: 1.6 Tons, Reinforced body minimizes vibration during high-pressure splitting.
5). Energy-Efficient Operation: 11KW motor with optimized hydraulic transmission reduces unnecessary power loss.
Technical Parameters
| Item | Specification |
|---|---|
| L × W × H | 200 × 100 × 215 cm |
| Net Weight | 1.6 T |
| Power | 11 KW |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Flow Rate | 63 L |
| Max Pressure | 80 T |
| Blade Feeding Speed | 15 cm/s |
| Max Working Height | 30 cm |
| Max Working Width | 40 cm |
| Output / Hour | 70 m² |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 340 KG |
| Packing Size | 210 × 110 × 225 cm |
| Gross Weight | 1.7 T |
Applications
1). Construction Wall Cladding Production: Ideal for producing natural-faced stones used in exterior and interior wall decoration.
2). Landscape & Garden Stone Processing: Widely used for garden paving stones, retaining walls, and outdoor decorative elements.
3). Stone Factory Mass Production: Suitable for medium to large-scale factories requiring consistent output and efficiency.
4). High-Hardness Stone Processing: Performs reliably when splitting granite, basalt, limestone, and similar materials.
Comparison Analysis(Buyer Decision Support)
Natural Surface Splitting Machine vs Manual Splitting
1. Machine ensures uniform thickness and texture, while manual work depends heavily on worker skill
2. Output efficiency increased by 3–5 times
3. Lower long-term labor cost and reduced material waste
Hydraulic Splitting Machine vs Mechanical Splitting Machine
1. Hydraulic system provides more stable and controllable force
2. Mechanical systems are prone to uneven splitting and higher wear
3. Hydraulic machines deliver longer service life and higher precision
Expert Q&A
Q1: How does this machine improve production efficiency?
A: Compared to manual processing, it increases efficiency by up to 300–500%, while ensuring uniform product quality.
Q2: Is operator experience required?
A: No extensive experience is needed. The machine features user-friendly controls, and operators can be trained within a short time.
Q3: What are the main maintenance requirements?
A: Regular hydraulic oil checks and blade inspections are sufficient to keep the machine running efficiently.
Q4: Can the splitting size be customized?
A: Yes. The machine supports adjustable parameters to meet different project specifications.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
