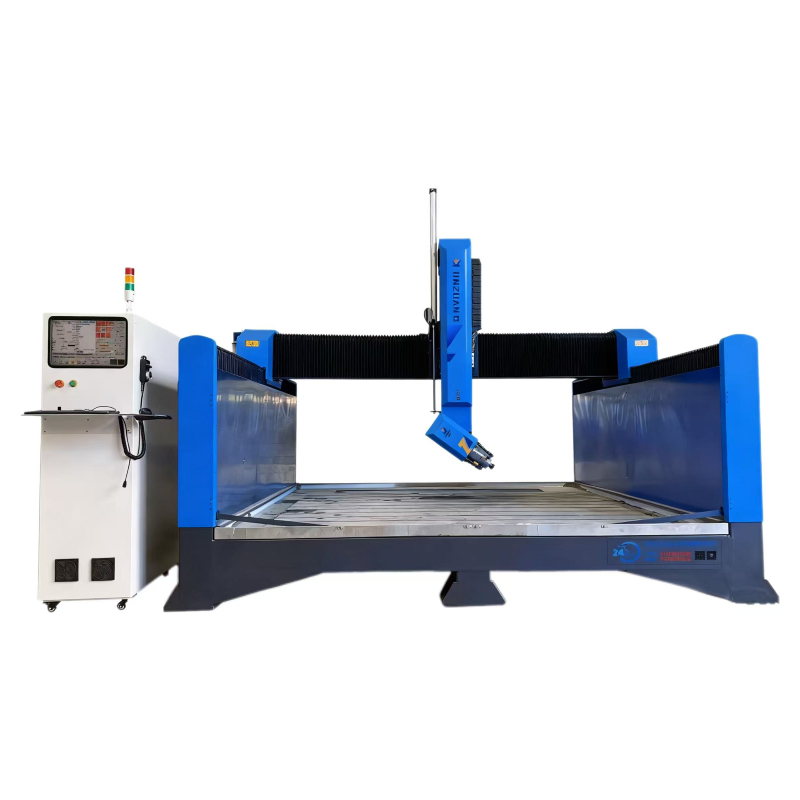

4-Axis CNC Swing Head Stone Engraving Machine

1).180° Tiltable Swing Head (A-Axis): Equipped with a high-precision servo-driven swing head that tilts freely from 0° to 180°, enabling the engraving tool to access extreme angles (up to 90°) on arc slabs, flower caps, and curved workpieces.

2).4-Axis Linkage & High-Precision Positioning: Integrates X/Y/Z linear axes with the 180° swing A-axis, supported by an industrial-grade CNC system with 0.001mm positioning accuracy. Real-time dynamic compensation technology ensures consistent precision even during high-angle, high-speed carving.

3).Arc Slab & Flower Cap Optimization: Pre-installed specialized processing templates for arc slabs (e.g., curved wall panels, circular table tops) and flower caps (e.g., cylindrical column tops, decorative crowns). The system automatically calculates tool paths based on the workpiece’s curvature, simplifying setup for complex shapes.

4).Powerful Spindle & Durable Tooling: Features a 5.5-7.5KW variable-speed spindle (6000-24000rpm) with high torque, capable of cutting hard stones like granite at extreme angles without stalling.

5).Stable Structure for High-Angle Processing: Constructed with a heavy-duty cast iron frame (weight: ≥2000kg) and reinforced guide rails, minimizing vibration during high-angle carving—critical for maintaining precision on curved surfaces. The swing head’s dual-bearing design ensures smooth, wobble-free tilting even under heavy tool loads.

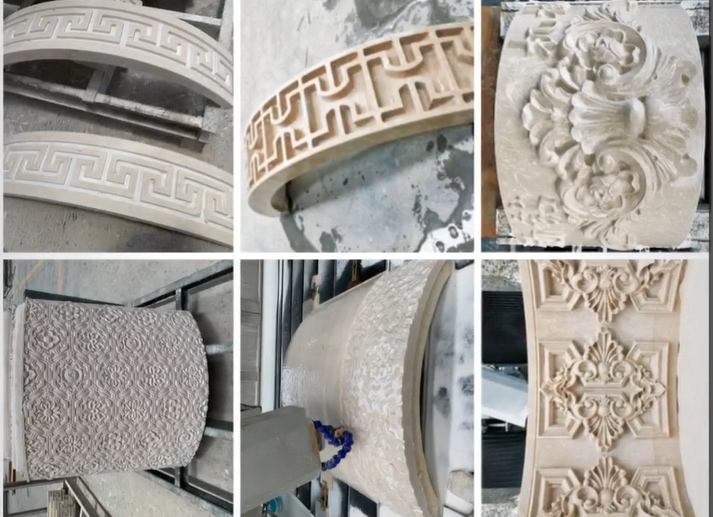

1).Arc Slab Wall & Floor Processing: Carving decorative patterns (e.g., floral motifs, geometric designs) on curved marble/granite wall panels for luxury hotels, shopping malls, and high-end residential lobbies. Also ideal for edge polishing and pattern engraving on arc-shaped stone floor tiles (e.g., circular lobby floors).

2).Flower Cap & Column Top Fabrication: Producing high-angle decorative carvings on stone flower caps (e.g., cylindrical column tops, square pillar crowns) for historical buildings, classical-style villas, and public squares.

3).Curved Memorial & Tombstone Components: Engraving inscriptions, portraits, or religious symbols on curved granite/marble tombstone surfaces (e.g., arc headstones, circular memorial plaques).

4).Custom Curved Stone Furniture: Crafting 3D patterns and edge details on curved stone furniture, such as marble circular coffee tables, quartz curved vanity tops, and granite arc dining table edges.

5).Architectural Curved Stone Details: Processing curved stone components for architectural projects, such as arc stone window frames, curved cornices, and 3D-carved curved stone brackets.

6).Landscape Curved Stone Decor: Creating decorative carvings on curved landscape stone elements, such as arc-shaped stone benches, curved fountain basins, and 3D-engraved curved stone planters for parks, resorts, and garden estates.

7).Irregular Stone Artwork: Carving 3D artworks on irregularly shaped stone blocks (e.g., naturally curved boulders, asymmetric stone slabs) for galleries, museums, and luxury interior design projects.
