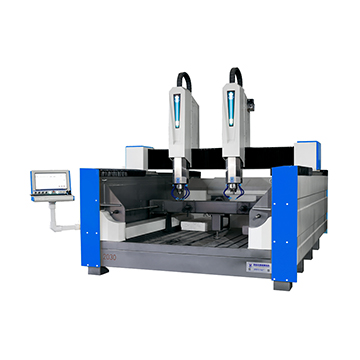

Designed exclusively for the stone processing industry, this 2-in-1 Flat & Relief CNC Engraving Machine integrates two core functions—flat engraving and 3D round carving—into a single, high-performance system. It eliminates the need for multiple machines, significantly reducing workshop space occupancy and equipment investment costs while boosting production efficiency.
Product Model :
20050-2DCertification :
CE, ISOSpecifications :
4900*3200*2500Origin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvidedWarranty Period :
1 Year
1).Dual-Mode Engraving Capability: Seamlessly switches between flat engraving (for 2D patterns, text, logos, and shallow grooves) and 3D round carving (for lifelike reliefs, sculptures, and three-dimensional decorative details) without manual reconfiguration.
2).High-Precision Processing: Equipped with a high-resolution optical ruler and imported servo drive system, achieving a positioning accuracy of ±0.02mm and ensuring sharp, consistent details on even the hardest stone surfaces.
3).Stone-Specific Durability: Features a wear-resistant spindle (with 5.5KW-7.5KW power options) and diamond-tipped tool compatibility, designed to withstand the abrasiveness of stone materials and extend tool lifespan.
4).Intelligent Operation System: Adopts user-friendly CNC software (compatible with CAD/CAM formats) with real-time processing monitoring, enabling easy operation even for less experienced technicians.
Technical Parameters
| Product Number | 20050-2D | |
| Workpiece Size | 600*2000mm | |
| Gantry Height | Round carving≤1300mm Flat carving≤550mm | |
| Guide Rail | Y-aixs four guide rails 30 rails,X,Z aixs 30 rails | |
| Screw Rod | Z-aixs rolling silk pavilion | |
| Transmission Mode | X.Y rack drive belt reducer,Z-direction screw drive | |
| Air Speed | 15m/min | |
| Processing Speed | 10m/min | |
| Spindle Power | 5.5~7.5kw/Motorized Spindle | |
| Spindle Speed | 24000rmp/min | |
| Motor | AC digital servo motor | |
| Operating Voltage | AC380V/50HZ | |
| Engraving Tool | 4/6/8/10/12/14mm | |
| File Format | G Code/HPGL | |
| Positioning Accuracy | ±0.05mm | |
| Repeatability | ±0.02mm | |
| Control System | Weihong Four Aixs Control System | |
| Machine Dimension | 4900*3200*2500mm | |
| Weight | 3400kg |

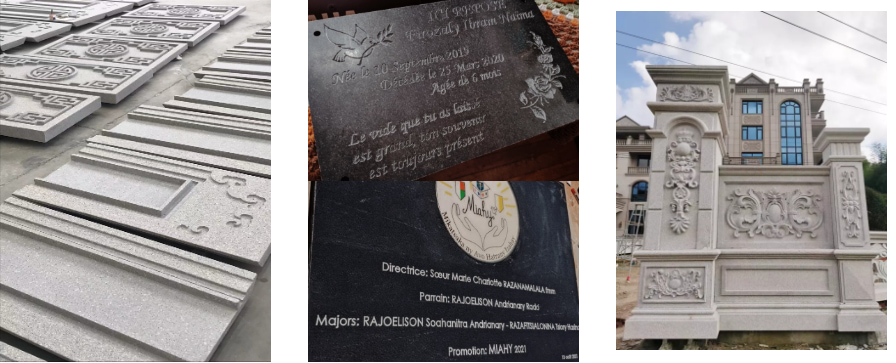

Applications
1).Architectural Stone Decoration: Engraving patterns, floral motifs, or cultural symbols on marble/granite wall panels, column wraps, and building facades for commercial buildings, hotels, or historical restoration projects.
2).Tombstone & Memorial Crafting: Creating personalized flat text (names, epitaphs) and 3D reliefs (portraits, religious symbols) on tombstone slabs, urns, or memorial plaques.
3).Stone Furniture & Home Decor: Producing intricate designs on stone tabletops, countertop edges, decorative stone vases, or wall art for high-end residential interiors.
4).Landscape & Garden Stonework: Carving 3D animal sculptures, scenic reliefs, or signage on natural stone boulders, garden benches, or fountain components.
5).Custom Stone Crafts: Manufacturing small-batch, high-detail stone products such as stone seals, collectible figurines, or cultural heritage replicas for craft markets or export.
Company Profile
Quanzhou golden Diamond Machinery Co.,Ltd
Quanzhou golden Diamond Machinery Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC equipment, such as stone carving machine, four axis and five axis engraving machine, CNC machining center and three-dimensional engraving machine. With the help of perfect product production supply chain and strong technical service team, the company focuses more on the research and development of digital intelligent engraving technology, boosting the upgrading of engraving machine performance and function.
Now it has become a domestic CNC engraving machine production and export volume of enterprises, and one-time through ISO9001,CE certification, ROHS certification and BV certification, the products are sold all over the country, and exported to Europe, America, Southeast Asia, the Middle East and more than 60 countries and regions.
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
