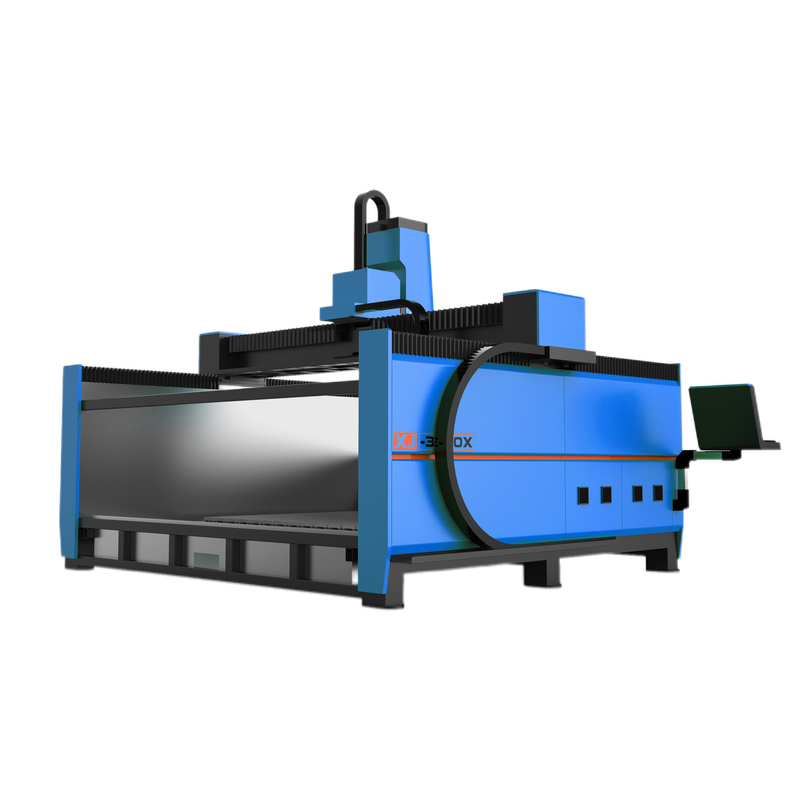

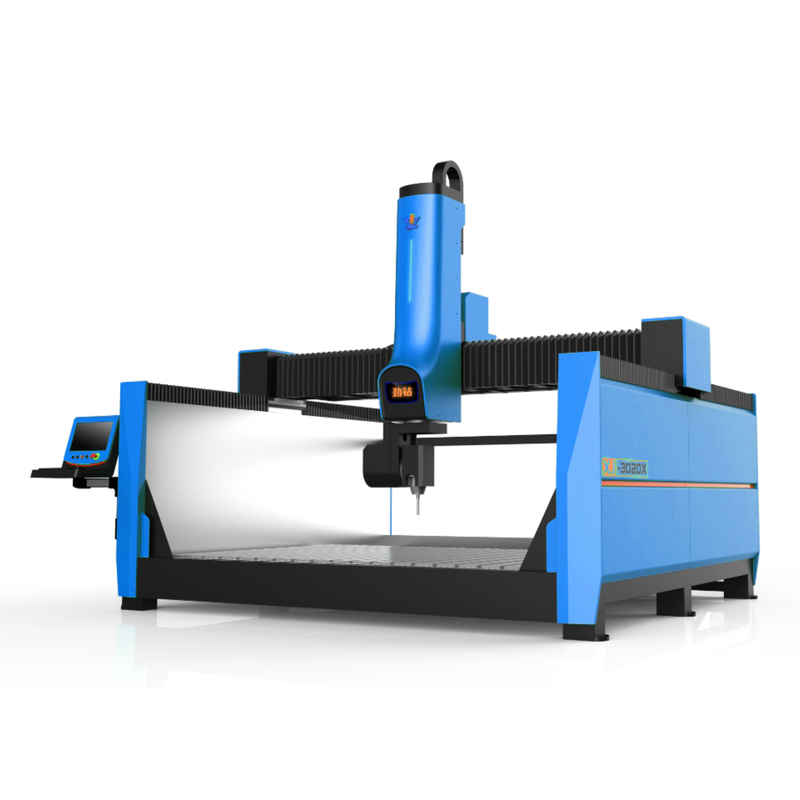

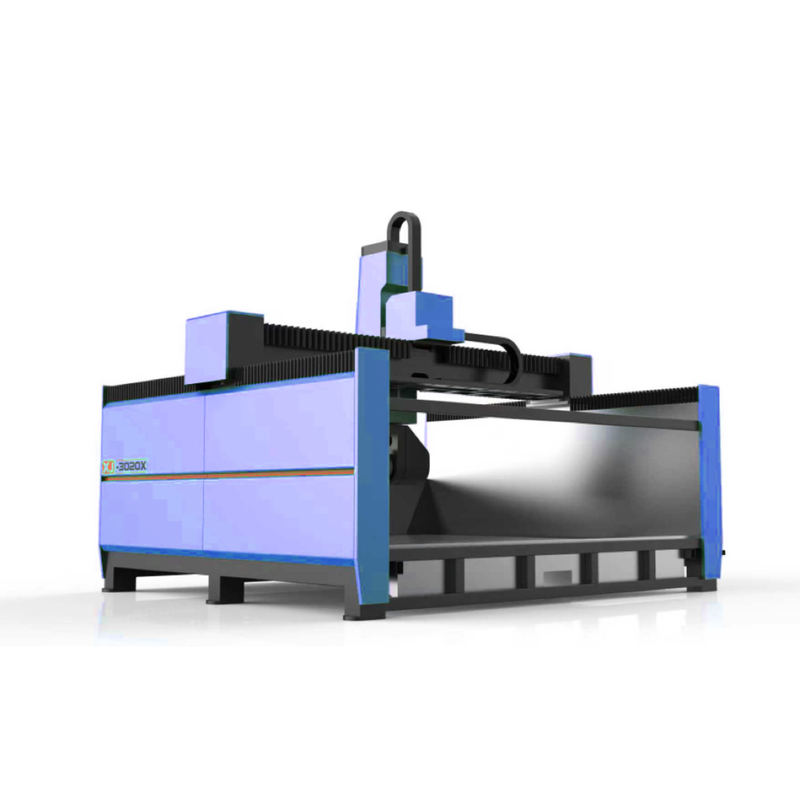

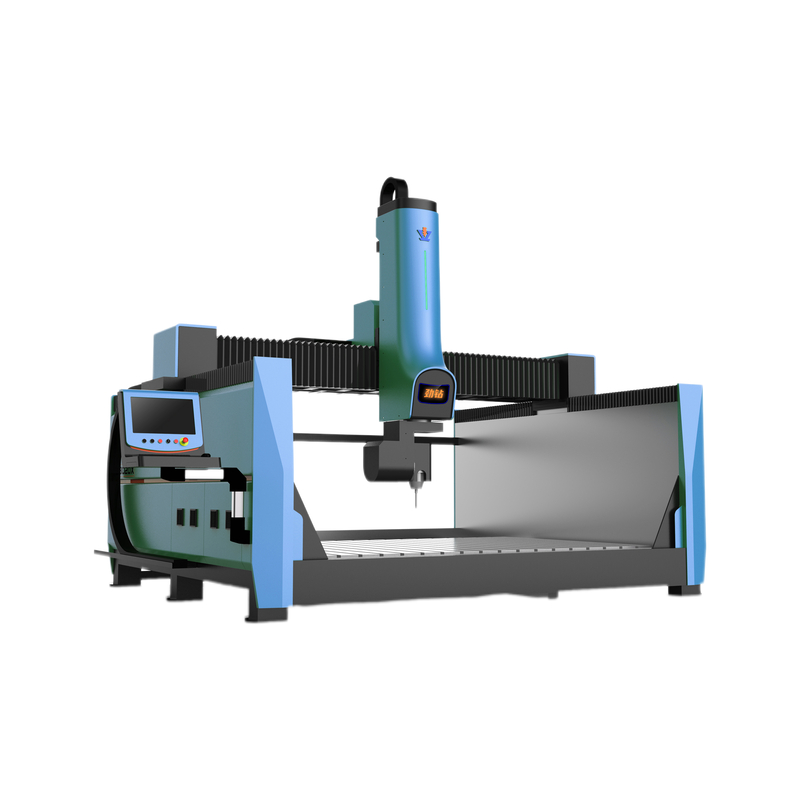

Engineered exclusively for the high-end stone processing industry, our 5-Axis CNC Stone Engraving Machine redefines the boundaries of stone craftsmanship by enabling ultra-precise 3D carving and complex shape processing.
Product Model :
XJ-3020XCertification :
CE, ISOSpecifications :
3400*4100*2500mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvidedWarranty Period :
1 Year
Unlike traditional 3-axis or 4-axis machines limited to flat or simple curved surfaces, this advanced equipment features full 5-axis linkage (X, Y, Z linear axes + A, C rotational axes), allowing the engraving tool to approach the stone workpiece from any angle. It integrates high-torque servo motors, industrial-grade CNC systems, and diamond-tipped tools, making it suitable for a wide range of stone materials—from hard granite and dense quartz to delicate marble and porous travertine.
1).Full 5-Axis Linkage & Multi-Angle Processing: Features X/Y/Z linear axes and A/C rotational axes , enabling the engraving tool to reach every surface of the stone workpiece—even complex undercuts, concave curves, and 3D reliefs that 3-axis machines cannot handle.
2).High-Precision CNC Control & 3D Design Compatibility: Adopts a professional-grade CNC system with 0.01mm positioning accuracy and real-time dynamic compensation. It seamlessly imports 3D design files to replicate intricate patterns, fine textures, and lifelike 3D shapes with exceptional detail.
3).Powerful Spindle & Wear-Resistant Tooling: Equipped with a high-power spindle (5.5-7.5KW) with variable speed (6000-24000rpm) and diamond-tipped engraving tools . The spindle’s high torque ensures efficient cutting of hard stones like granite, while the diamond tools maintain sharpness for long-term use, reducing tool replacement costs.
4).Intelligent Workpiece Clamping & Positioning: Comes with a hydraulic or pneumatic clamping system that securely fixes irregularly shaped stone workpieces (e.g., curved slabs, stone blocks) and a laser positioning sensor that automatically calibrates the workpiece’s position. This eliminates manual alignment errors and ensures consistent processing accuracy.
5).User-Friendly Interface & Remote Monitoring: Features a touchscreen display with multilingual support and intuitive operation software. It also supports remote monitoring via mobile apps, allowing operators to check processing progress, adjust parameters, and troubleshoot issues from anywhere.
Technical Parameters
| Product Number | XJ-3020X |
| Platform Dimensions | 3000*2000mm |
| Workpiece Size | 2200*1800mm |
| Feed Height | ≤600mm |
| Air Speed | 20m/min |
| Processing Speed | 15m/min |
| Spindle Power | 5.5KW- 7.5KW Motorized Spindle |
| Spindle Speed | 6000~24000 rpm/min |
| Motor | NC Studio |
| Reducer | Speed Ratio 7 |
| Operating Voltage | AC220V/ 50HZ or AC380V/ 50HZ |
| Engraving Tool | Φ6/8/10/12/14/16mm |
| File Format | G Code/ENG |
| Positioning Accuracy | ±0.02mm |
| Repeatability | ±0.01mm |
| Control System | NC Studio |

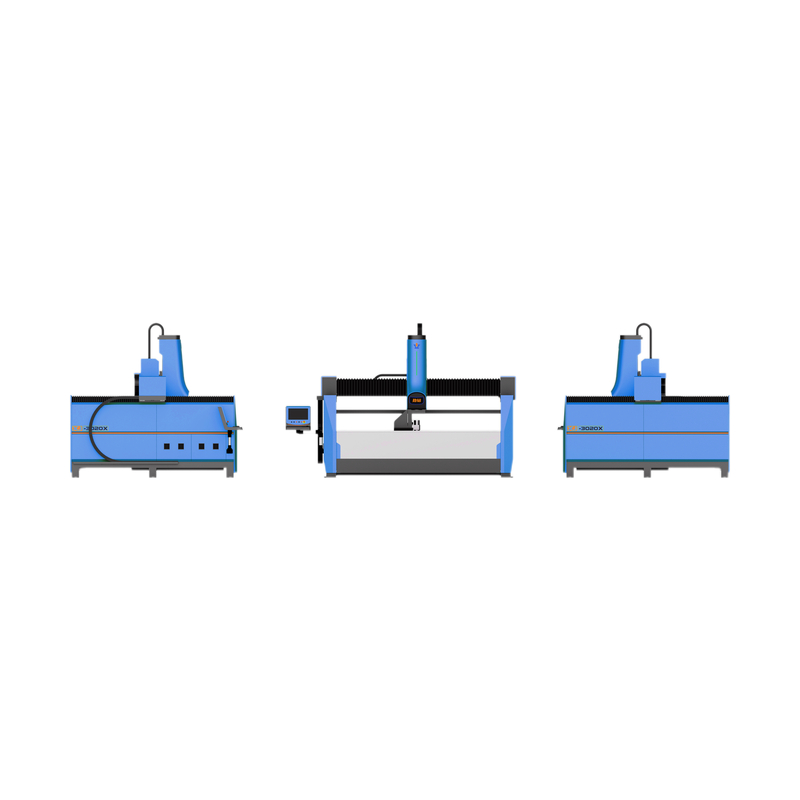

| Machine Dimension | 3400*4100*2500mm |
| Weight | 4300kg |
Applications
1).High-End Stone Sculpture Creation: Carving lifelike 3D stone sculptures (e.g., human figures, animal statues, abstract art) from marble or granite for galleries, museums, luxury hotels, and public squares.
2).Custom Architectural Stone Components: Producing complex-shaped stone components for high-end buildings, such as curved marble column capitals, 3D relief wall panels, and custom stone arches.
3).Luxury Residential Stone Decor: Creating one-of-a-kind stone elements for high-end homes, such as 3D carved marble fireplace surrounds, custom curved quartz countertops, and decorative stone wall inlays.
4).Monument & Memorial Artistry: Designing and engraving complex 3D memorials, such as granite tombstones with lifelike portrait carvings, 3D relief family crests, and curved memorial benches.
5).Landscape Stone Features: Crafting decorative 3D stone features for parks, gardens, and resorts, such as curved stone fountains, 3D carved stone planters, and decorative stone markers.
6).Custom Stone Furniture: Producing luxury stone furniture with complex shapes, such as curved marble dining tables, 3D carved stone coffee tables, and custom stone vanity units.
7).Industrial Stone Prototyping: Creating high-precision stone prototypes for architectural firms, interior designers, and stone product manufacturers.
Company Profile
Quanzhou golden Diamond Machinery Co.,Ltd
Quanzhou golden Diamond Machinery Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC equipment, such as stone carving machine, four axis and five axis engraving machine, CNC machining center and three-dimensional engraving machine. With the help of perfect product production supply chain and strong technical service team, the company focuses more on the research and development of digital intelligent engraving technology, boosting the upgrading of engraving machine performance and function.
Now it has become a domestic CNC engraving machine production and export volume of enterprises, and one-time through ISO9001,CE certification, ROHS certification and BV certification, the products are sold all over the country, and exported to Europe, America, Southeast Asia, the Middle East and more than 60 countries and regions.
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
