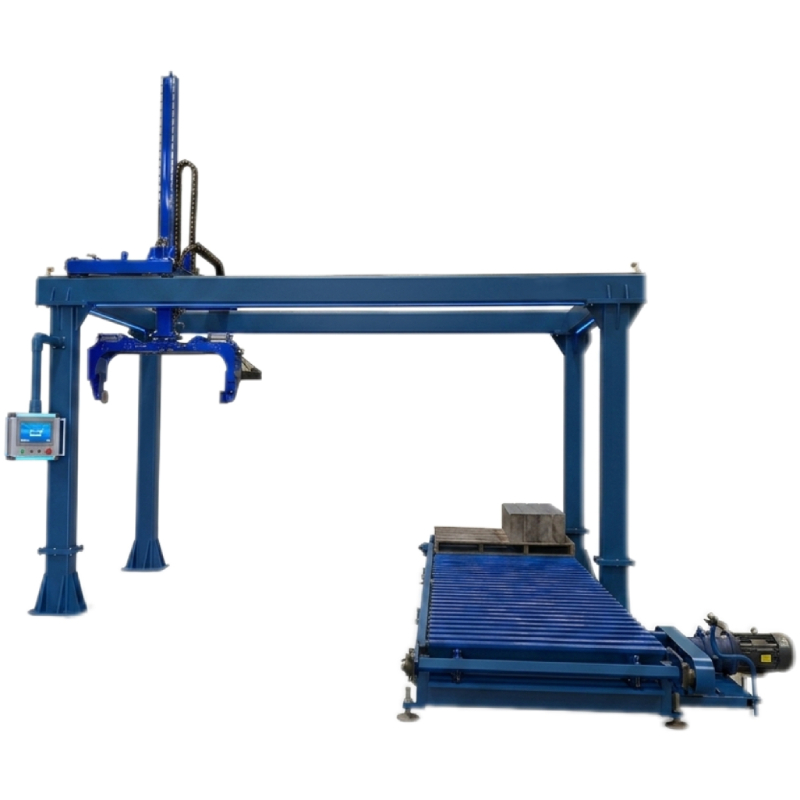

JZ-QJ1000 Automatic Curb Stone Unloading Machine is a servo-controlled clamping system designed for safe and efficient unloading of granite kerbstones. With a maximum lifting capacity of 250kg, it helps stone factories reduce manual handling and improve production efficiency in curb stone processing lines.
Product Model :
JZ-QJ1000Certification :
CE, ISOSpecifications :
MAX. 1200mm lengthOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

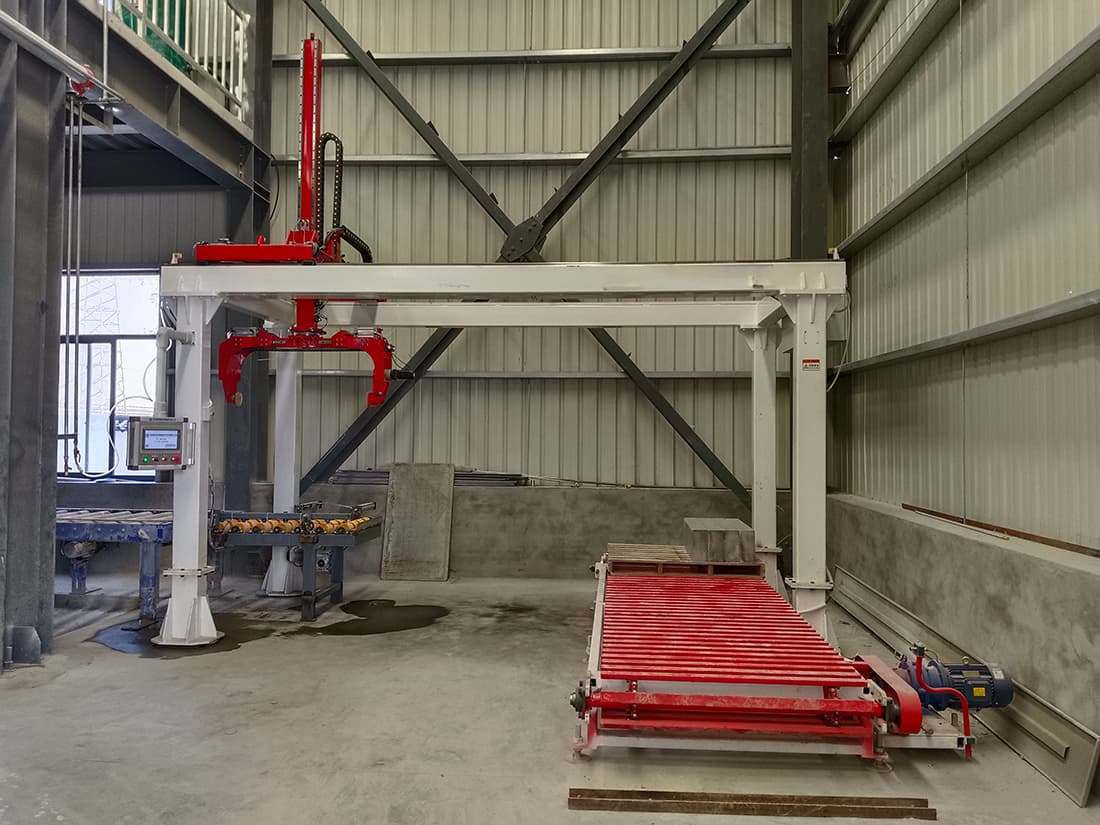

The JZ-QJ1000 Automatic Curb Stone Unloading Machine is specially developed for automatic handling of roadside kerbstones after cutting, grinding, or polishing processes. Equipped with a precision clamping mechanism and multi-direction servo control system, the machine can automatically grip, lift, move, and place stone products with stable positioning.
Featuring a 1.8KW lifting servo motor and 0.75KW front, rear, left, and right servo motors, JZ-QJ1000 provides smooth movement control and accurate stone transfer. It supports common curb stone sizes up to 1200mm in length, while customized solutions are available for different stone dimensions.
Core Features
1. Automatic Stone Clamping and Unloading: Replaces manual handling with intelligent material transfer

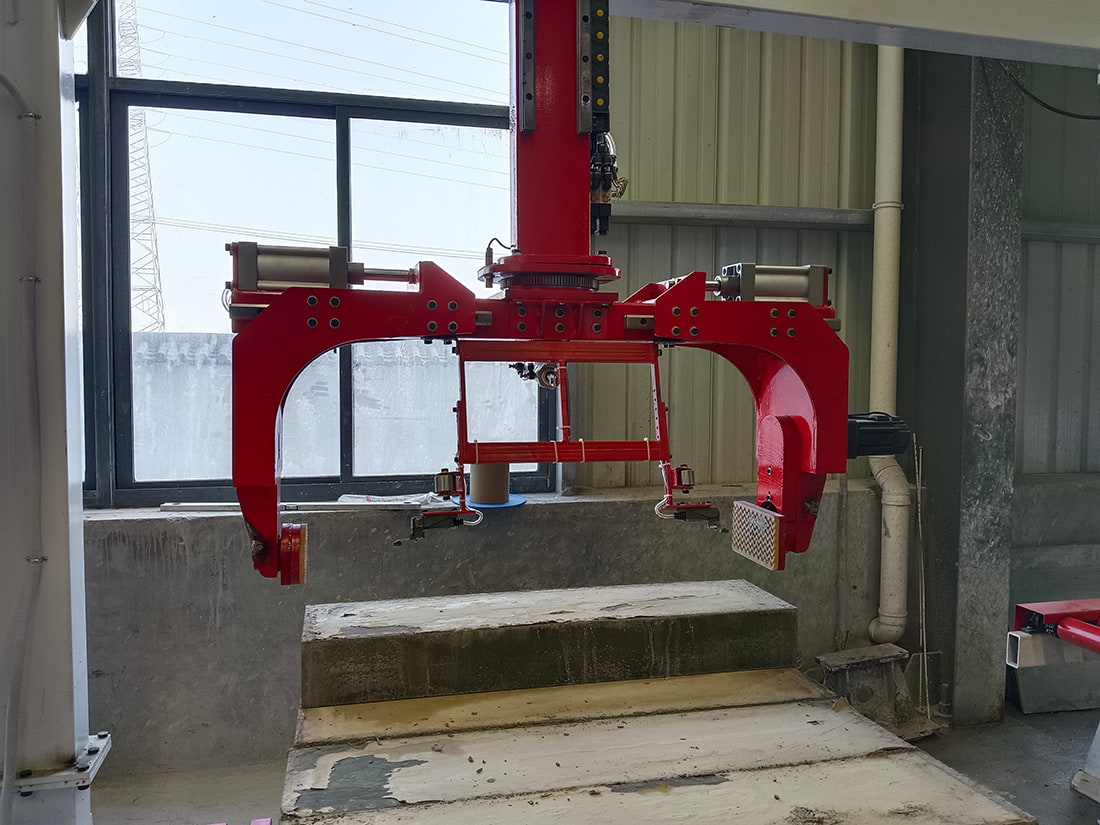

The clamping structure securely grips curb stones and completes lifting and unloading operations automatically, reducing dependence on manual labor during heavy stone movement.
2. Servo-Controlled Precision Movement: Ensures accurate positioning during stone transportation
Equipped with multi-axis servo motors for lifting and horizontal movement, the machine achieves smoother operation and better placement accuracy compared with traditional mechanical handling methods.
3. Safe Curb Stone Handling: Protects finished stone surfaces from damage
The controlled clamping force helps prevent scratches, edge breakage, and surface impact during unloading, especially for polished or finished kerbstones.
4. Heavy Load Lifting Capability: Handles common municipal curb stone sizes efficiently
With a maximum lifting capacity of 250kg, the machine is suitable for moving various granite and stone curb products in daily production environments.
5. Flexible Size Adaptability: Supports different stone specifications and customized requirements
The machine can handle common stone lengths up to 1200mm and can be customized according to special curb stone dimensions.
6. Production Line Integration: Improves overall stone processing automation
It can be connected with cutting machines, polishing machines, and finishing equipment to create a smoother automatic curb stone production workflow.
Technical Parameters
| Dimension(LxWxH) | 4000x2200x2400mm | ||||||
| Max. Lifting capacity | 250kgs | ||||||
| Lift servo motor | 1.8KW | ||||||
| Front, rear, left and right servo motors | 0.75KW | ||||||
| Max. Lifting stone size | (Cover the common sizes MAX. 1200mm length )Supporting customization | ||||||
Applications
JZ-QJ1000 vs Traditional Curb Stone Handling
1. Manual Handling vs Automatic Lifting:
Traditional methods require multiple workers to lift and move heavy curb stones, while JZ-QJ1000 completes clamping, lifting, and transferring automatically.
2. High Labor Cost vs Lower Labor Demand:
Manual unloading depends heavily on physical labor, while JZ-QJ1000 reduces manpower requirements and improves production efficiency.
3. Unstable Handling vs Precise Servo Control:
Human handling may cause uneven movement or stone collision, while the servo-driven system provides smoother and more accurate positioning.
4. Higher Damage Risk vs Safer Stone Protection:
Manual movement increases the risk of edge chipping and surface damage, while the clamping mechanism ensures safer transfer of finished stone products.
Expert Q&A
Q1: What size of curb stones can this machine handle?
A: JZ-QJ1000 supports common curb stone sizes with a maximum length of approximately 1200mm. Customized solutions are available for special dimensions.
Q2: What is the difference between an automatic curb stone unloader and manual handling?
A: Manual handling requires more workers and increases the risk of stone damage. The automatic unloading machine uses servo-controlled movement and clamping technology to improve efficiency, safety, and consistency.
Q3: Can JZ-QJ1000 be integrated into an automatic stone production line?
A: Yes. It can be combined with curb stone cutting machines, polishing machines, and other finishing equipment to create a more automated stone processing workflow.
Q4: Why use servo motors in curb stone handling equipment?
A: Servo motors provide more accurate position control, smoother movement, and better repeatability compared with conventional motor systems, which is especially important when handling finished stone products.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
