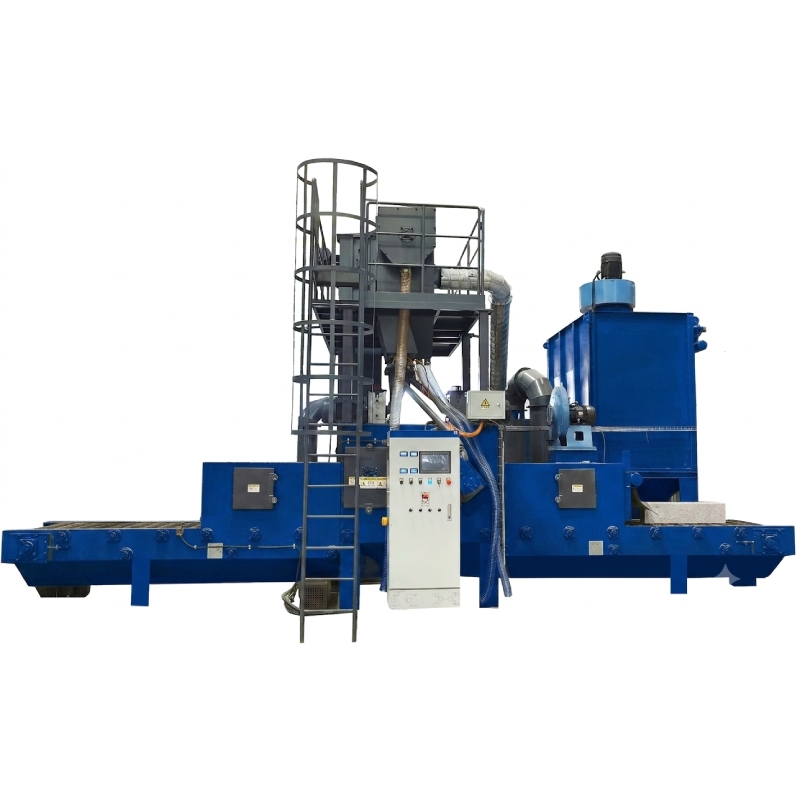

JZ-PS1000 Wire Mesh Belt Shot Blasting Machine is an automatic surface treatment solution designed for continuous cleaning, roughening, and finishing of stone materials.
Product Model :
JZ-PS1000Certification :
CE, ISOSpecifications :
L:9000mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

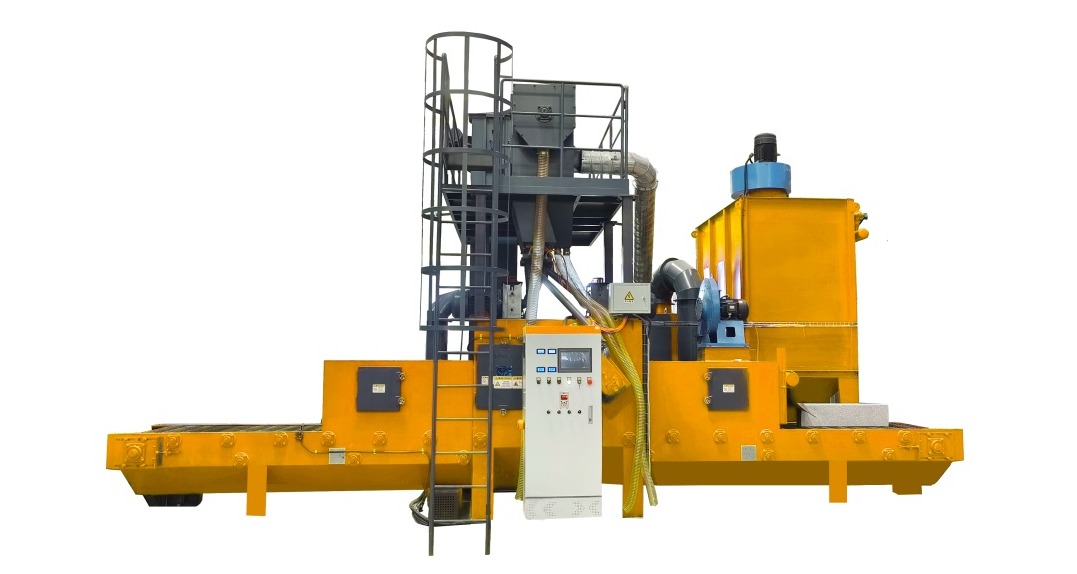

JZ-PS1000 Wire Mesh Belt Shot Blasting Machine integrates automatic conveying, high-speed steel shot impact, and surface strengthening technology to achieve stable and repeatable stone surface treatment. The machine adopts a continuous wire mesh belt structure, allowing stones to pass through the blasting chamber smoothly without manual turning, making it suitable for mass production environments.
With 4 turbine inverters, 0.8-1.2mm steel shot/cut wire shot compatibility, and adjustable blasting parameters, the equipment can process different stone surfaces according to production requirements. The blasting speed can be adjusted from 0.5 to 2.5m/min, helping operators balance processing efficiency and surface texture quality.
Core Features
1. Efficient Surface Cleaning: Removing stains, residues, and weak surface layers from stone materials
Uses high-speed steel shot impact to eliminate dust, oxidation layers, and surface impurities, preparing granite, marble, and other materials for further processing or finishing.
2. Uniform Surface Texturing: Creating consistent roughness for decorative and functional applications
Achieves a controlled surface roughness of 40-75μm, producing even textured finishes that improve appearance and enhance surface bonding performance.
3. Continuous Automatic Processing: Supporting high-volume stone production lines
The wire mesh belt conveyor enables continuous feeding and unloading, reducing manual handling and improving production efficiency for repeated stone surface treatment.
4. Adjustable Blasting Performance: Adapting to different materials and finishing requirements
The stepless frequency-controlled blasting speed from 0.5-2.5m/min allows operators to optimize impact intensity according to stone type, thickness, and required surface effect.
5. Stable Shot Circulation System: Maintaining long-term blasting efficiency
Compatible with Ø0.8-1.2mm steel shot and cut wire shot, with an initial shot loading capacity of 1.5-2 tons, ensuring sufficient abrasive supply for continuous operation.
6. Space-Saving Installation Design: Simplifying factory setup
Designed without foundation pit requirements, allowing easier installation in stone factories with limited space or existing production layouts.
Technical Parameters
| Inlet and outlet opening size | 1000*500 (WxH)mm | ||||||
| Blast cleaning speed(stepless frequency control the speed) | 0.5-2.5m/min | ||||||
| Surface roughness | 40-75um | ||||||
| Control panel Main Voltage | According local power supply 24V DC | ||||||
| Total power | Approx. 61.9kw | ||||||
| Compressed air consumption | 0.5 | ||||||
| Pressure range of the compressed air | 6~8Mpa | ||||||
| lype and size | Ø0.8-1.2 (steel shot, cut wire shot)mm | ||||||
| Initial addition | 1.5-2ton | ||||||
| Total length of machine | 9000mm | ||||||
| Foundation pit requirement | Without | ||||||
| Invter of turbine | 4PCS（Each turbine） | ||||||

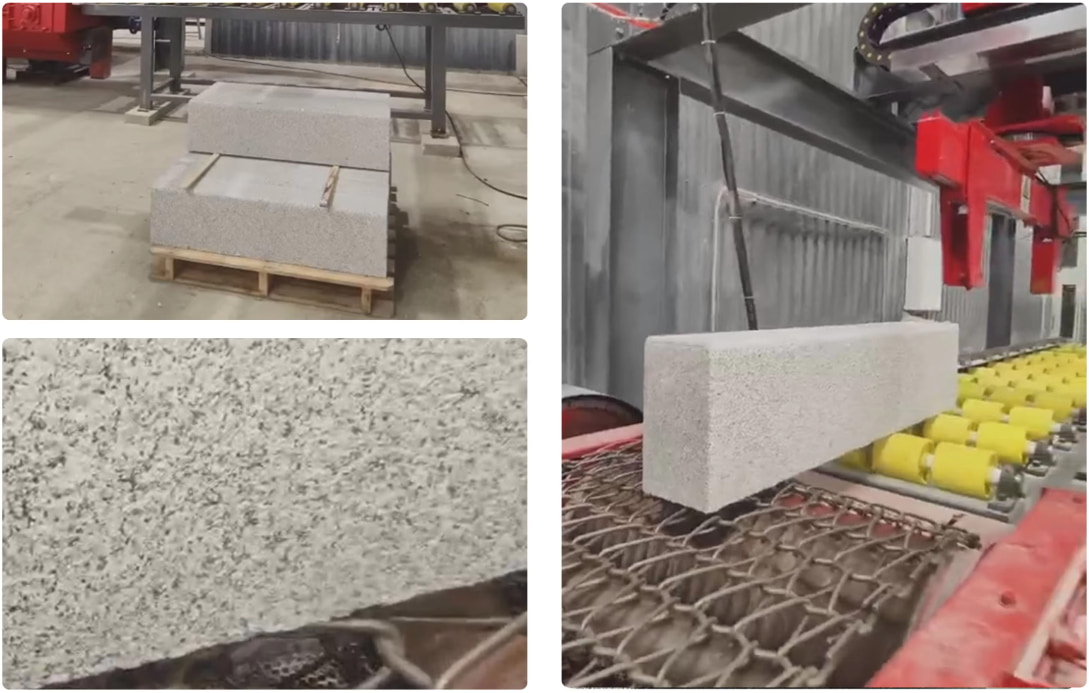

Applications
Why Choose JZ-PS1000 Wire Mesh Belt Shot Blasting Machine?
| Traditional Manual Sandblasting | JZ-PS1000 Wire Mesh Belt Shot Blasting Machine |
|---|---|
| Requires more labor operation and manual adjustment | Automatic conveying and continuous blasting reduce labor dependence |
| Surface effect may vary between workers | Frequency-controlled speed ensures consistent blasting quality |
| Limited production capacity for large orders | Designed for continuous industrial production |
| Difficult to control surface roughness | Adjustable parameters achieve 40-75μm controlled texture |
| Requires complex installation preparation | No foundation pit required for easier factory installation |
Expert Q&A
Q1: What surface effect can this machine achieve?
A: The JZ-PS1000 can create a controlled rough surface with approximately 40-75μm surface roughness, depending on abrasive type, blasting speed, and material characteristics.
Q2: What is the difference between shot blasting and sandblasting?
A: Shot blasting uses recyclable steel shots with controlled impact force, providing more uniform processing and higher efficiency for industrial production compared with manual sandblasting methods.
Q3: Does the machine require a foundation pit?
A: No. The JZ-PS1000 is designed without foundation pit requirements, reducing installation difficulty and allowing flexible placement in existing workshops.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
