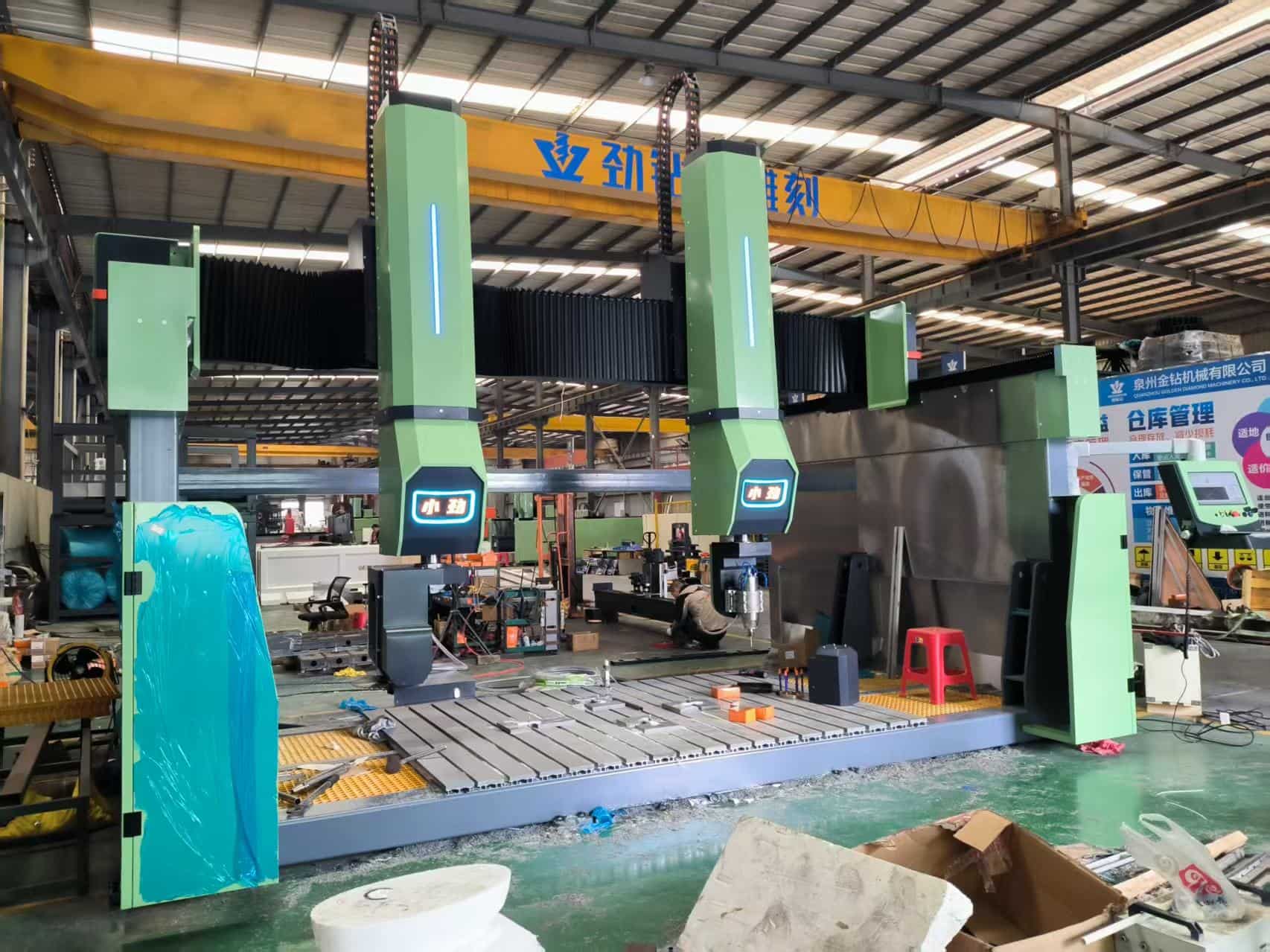

Dual 5 Axis CNC Machining Center with Engraving Head and Saw Blade
This dual 5 axis CNC machining center integrates two independent processing units: one 5-axis engraving head for complex 3D carving and one 5-axis saw blade unit for high-precision cutting.
Product Model :
3020XQCertification :
CE, ISOSpecifications :
6300*3700*4800mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year
Designed for large-format stone processing, it enables engraving and cutting to be completed on a single platform, significantly reducing material handling time and positioning errors.
With a 3000 × 2000 mm working table, X/Y/Z stroke of 3500/2000/1600 mm, and a rigid 9000 kg machine structure, the machine maintains ±0.01 mm repeatability even during long continuous operation.
It is widely used in architectural stone fabrication, customized stone products, and high-end decorative projects.
Core Features
1). Dual 5-Axis Integrated Processing: One 5-axis engraving spindle and one 5-axis saw blade operate on the same platform, enabling cutting and carving without secondary repositioning and improving overall machining accuracy.
2). High-Power 5-Axis Engraving Capability: The engraving unit is equipped with a 25 kW 5-axis carving spindle, supporting ER32 tools and complex 3D surface machining for sculptures, reliefs, and deep cavity engraving.
3). Precision 5-Axis Cutting System: The 5-axis saw unit supports Ø300–700 mm blades, with a rotational speed up to 8000 rpm, allowing bevel cutting, arc cutting, and multi-angle stone profiling.
4). Large Working Area for Heavy Stone Slabs: A 3000 × 2000 mm platform and long-axis strokes support large stone panels, countertops, and architectural components without sectioning.
5). High Accuracy and Stability: With positioning accuracy of ±0.02 mm and repeatability of ±0.01 mm, the machine maintains dimensional consistency during continuous 72-hour production cycles.
6). Industrial-Grade Motion and Control System: Powered by full AC servo motors and an industrial CNC control system, ensuring smooth 5-axis interpolation and reliable long-term operation.
Technical Parameters
| Product Number | 3020XQ |
| Platform dimension | 3000*2000mm |
| X/Y/Z axis stroke | 3500/2300/1600mm |
| A/C axis stroke | 0-180°/±365° |
| Air speed | 30m/min |
| 5 Axis Carving Spindle power | 7.5kw(Inverter water-cooled spindle) |
| 5 Axis Carving Spindle speed | 0~24000rpm/min |
| 5 Axis Carving Spindle Style | ER32 |
| 5 Axis Cutting Power | 25kw |
| 5 Axis Cutting speed | 0~8000rpm/min |
| 5 Axis Cutting Style | BT40 tool holder |
| 5 Axis Cutting Blade | Ф300-Ф700 |
| Motor | AC digital servo motor |
| Reducer Gear Ratio | i=7 |
| Operating Voltage | AC220V/50Hz or AC380V/50Hz |
| Engraving Tools | Φ6/8/10/12/14/16mm |
| File Format | G code/ENG/NC |
| Positioning Accuracy | ±0.02mm |
| Repeatability | ±0.01mm |
| Control System | NcStudio |
| Weight | 9000kg |
| Dimension | 6300*3700*4800mm |
Applications
1). Architectural Stone Fabrication: Used for cutting and engraving countertops, wall panels, stair components, and façade elements, completing both profiling and decorative carving on one machine.
2). Customized Stone Furniture and Decoration: Ideal for producing tables, sinks, columns, and artistic stone components that require both precise cutting and 3D engraving.
3). Sculpture and Relief Projects: Suitable for large-scale stone sculptures, relief walls, and cultural monuments, where rough cutting and fine engraving must be accurately aligned.
4). High-End Engineering and Export Projects: Widely applied in hotel, commercial complex, and overseas construction projects, where dimensional accuracy and surface consistency are critical.
Comparison Analysis: Dual 5 Axis vs Traditional Separate Machines
1). Process Integration: Dual 5 axis machining completes cutting and engraving on one platform, while traditional setups require separate saws and carving machines.
2). Accuracy Control: One-time positioning reduces cumulative errors caused by multiple clamping steps.
3). Production Efficiency: Eliminates material transfer, reducing labor intensity and shortening production cycles by 20–30%.
5). Workshop Layout: One integrated machine replaces two standalone units, improving workshop space utilization.
Expert Q&A
Q1: Why choose a dual 5 axis machining center instead of separate machines?
Because engraving and cutting are completed in one setup, reducing positioning errors and improving efficiency, especially for complex customized stone products.
Q2: Can the machine handle long continuous operation?
Yes. With a 9000 kg rigid structure and industrial servo system, it can operate continuously for 72 hours while maintaining ±0.01 mm repeatability.
Q3: What stone sizes can be processed?
The machine supports slabs up to 3000 × 2000 mm, with extended axis strokes suitable for oversized stone components.
Q4: What types of processing does the saw blade support?
The 5-axis saw unit supports straight cutting, bevel cutting, arc cutting, and multi-angle profiling with blades from Ø300 to Ø700 mm.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
Engineered for complex surfaces, special-shaped components, and artistic carving! The intelligent 5-axis system enables one-stop machining, transforming your concepts into reality with high efficiency and precision, significantly boosting productivity and profit margins.
Read More
The 5-axis bridge integrated cutting machine is a state-of-the-art industrial solution engineered for high-precision cutting across diverse materials. Combining a robust bridge structure with advanced 5-axis simultaneous motion technology, it delivers superior accuracy, speed, and stability for both complex shapes and large-scale cutting tasks. Equipped with intelligent CNC controls and durable components, making it a reliable choice for factories, processing plants, and fabrication workshops globally.
Read More
Introducing our professional 3-Axis Stone Cutting Machine—a dedicated solution engineered to redefine accuracy and efficiency in stone processing. Tailored exclusively for cutting granite, marble, limestone, and other natural stone materials, this machine leverages a stable 3-axis (X, Y, Z) motion system to deliver clean, consistent cuts across flat surfaces and linear profiles.
Read More
Our 4-axis stone cutting machine is designed for precision, versatility, and high-efficiency cutting of stone materials. With advanced CNC technology, it ensures superior accuracy and long-term reliability in demanding environments. Ideal for stone manufacturers looking for enhanced productivity and minimal downtime.
Read More
This dual 5 axis CNC machining center integrates two independent processing units: one 5-axis engraving head for complex 3D carving and one 5-axis saw blade unit for high-precision cutting.
Read More

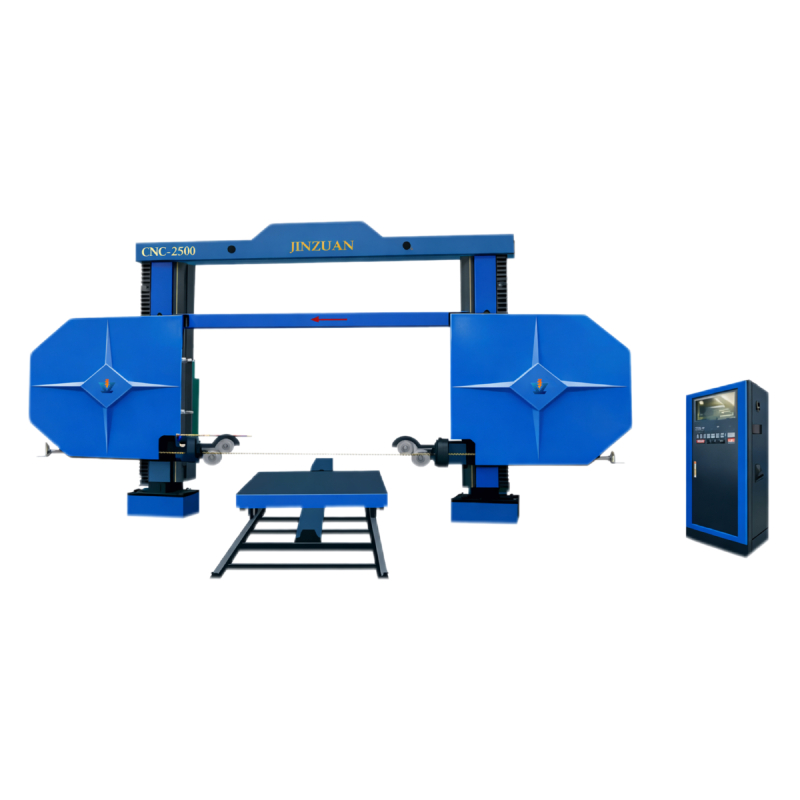

Discover precision cutting with our CNC Wire Saw Machine. Engineered for massive stone blocks, this heavy-duty cutter features a 20-ton worktable capacity, an 11kW high-torque motor, and a dynamically balanced Φ1600mm flywheel for unparalleled stability. Ideal for granite, marble, and engineering stone, it ensures efficient, high-speed processing with minimal vibration.
