Discover precision cutting with our CNC Wire Saw Machine. Engineered for massive stone blocks, this heavy-duty cutter features a 20-ton worktable capacity, an 11kW high-torque motor, and a dynamically balanced Φ1600mm flywheel for unparalleled stability. Ideal for granite, marble, and engineering stone, it ensures efficient, high-speed processing with minimal vibration.
Product Model :
JZY-2500Certification :
CE, ISOSpecifications :
7800*6300*3800Origin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

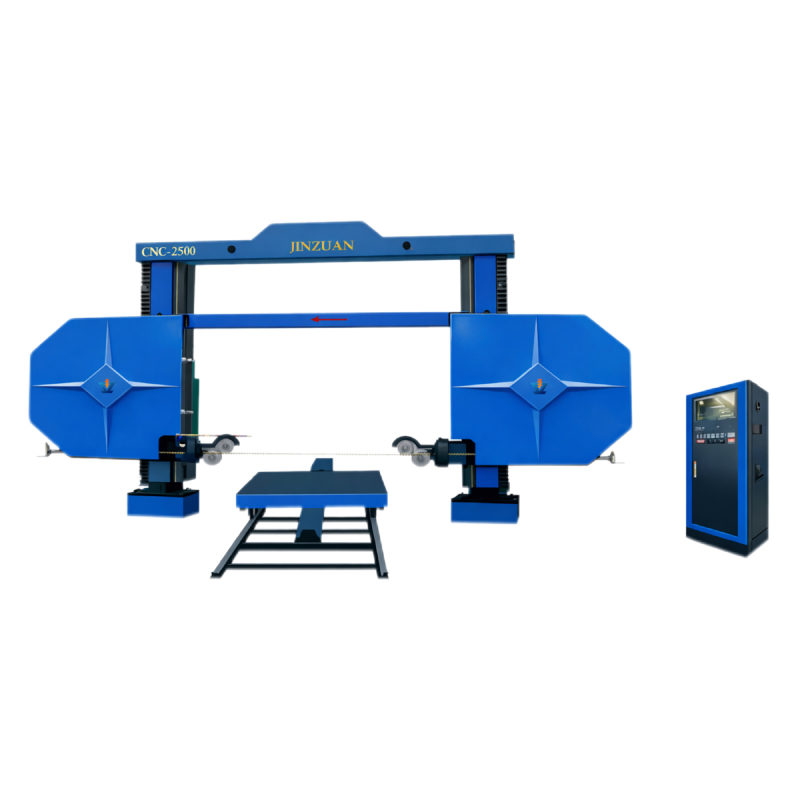

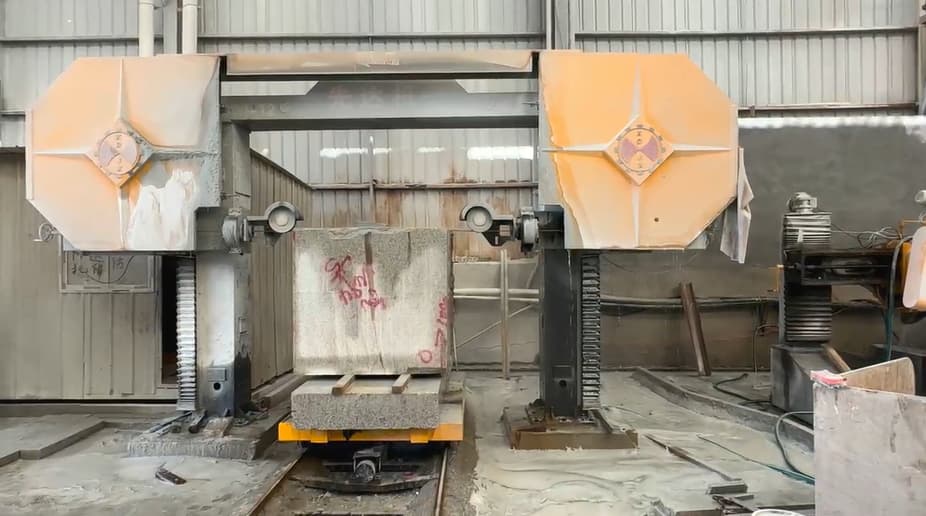

This industrial stone wire saw machine is engineered for high-capacity block cutting and quarry processing. Equipped with a 1600mm flywheel and an 11kW high-torque motor, it ensures stable operation, smooth cutting, and consistent performance under heavy load conditions.
Designed for demanding stone fabrication environments, this machine supports large processing dimensions and a worktable load capacity of 20 tons. With inverter speed control and compatibility with diamond bead ropes from 5.3mm to 9.2mm, it delivers precision cutting for granite, marble, and other hard natural stones. It is optimized for continuous industrial operation, improving productivity while maintaining operational safety and mechanical stability.
Core Features
1). Large Processing Capacity for Heavy Blocks: Maximum processing size of 2500 mm length × 3000 mm width × 1500 mm height, ideal for large granite and marble blocks used in construction and monument projects.
2). 1600 mm Precision Balanced Flywheel: Flywheel diameter of 1600 mm calibrated by a precision dynamic balancing machine. This reduces vibration during high-speed operation and extends bearing and wire rope lifespan compared to smaller flywheel systems.
3). 11 kW Six Pole High Torque Motor: Equipped with a 6 pole high torque motor, ensuring stable cutting under heavy stone load. Compared with standard 4 pole motors, the 6 pole configuration delivers stronger low speed torque and smoother power output.
4). 15 kW High Performance Inverter Drive: Variable speed control allows adjustment according to different stone hardness and bead rope diameter. Enables optimized cutting efficiency and reduces unnecessary wire wear.
5). 20 Ton Worktable Load Capacity: Heavy duty structure supports up to 20T stone blocks. Reinforced worktable design ensures structural rigidity during long time cutting operations.
6). Diamond Bead Rope Compatibility: Supports bead rope diameter from 5.3 mm to 9.2 mm. Suitable for both fine precision cutting and high speed rough cutting applications.
Technical Parameters
| Max Processing Size | (Front) Length 2500 x (Depth) Width 3000 x Height 1500 | ||||||
| Flywheel Diameter | Φ1600mm (Calibrated by precision dynamic balancing machine) | ||||||
| Worktable Dimensions | 1300mm*2500mm | ||||||
| Worktable Load Capacity | 20T | ||||||
| Main Motor Power | 11kw - 6-pole high torque motor | ||||||
| Main Motor Speed Control Function | 15kw high-performance inverter drive | ||||||
| Total Power | 19kw | ||||||
| Diamond Bead Rope Diameter | Φ5.3mm~Φ9.2mm | ||||||
| Overall Dimensions | 7800*6300*3800 (Including foundation height) | ||||||
| Water Consumption | ≈3m³/h | ||||||

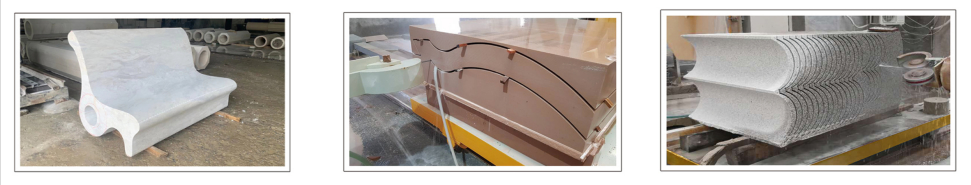

Applications
1). Granite Quarry Block Cutting : High Hardness Natural Stone Processing, Ideal for primary separation of large granite blocks directly in quarry environments.
2). Marble Factory Production : Precision Block Sizing Before Slab Cutting, Used to pre cut marble blocks into manageable sizes for polishing and slab production.
3). Monument Manufacturing : Oversized Memorial Stone Shaping, Suitable for cutting thick memorial stones and custom monument projects.
4). Infrastructure Stone Fabrication : Bridge and Public Construction Components, Processes large stone elements required for bridges, landscaping, and municipal projects.
Comparison Analysis
1). 1600 mm Flywheel vs Smaller Flywheel Models
A larger flywheel provides more stable rotational inertia, reducing wire vibration and improving cutting accuracy. Smaller flywheel machines may experience higher vibration under heavy load conditions.
2). 6 Pole High Torque Motor vs Standard Motor
Six pole motors generate higher torque at lower speeds, making them more suitable for thick and dense stone cutting. Standard motors may struggle with torque consistency under heavy cutting loads.
3). Inverter Controlled Speed vs Fixed Speed Systems
Inverter drive allows operators to adjust cutting speed based on stone hardness. Fixed speed systems cannot optimize efficiency for different materials, leading to faster wire consumption.
Expert Q&A
Q1. What stone materials can this machine cut
It is suitable for granite, marble, limestone, sandstone, and other natural stones. With appropriate bead rope selection, it can also process high hardness stone blocks.
Q2. What bead rope diameter should I choose
For fine and precise cutting, 5.3 mm to 6.3 mm ropes are recommended. For heavy block rough cutting, 8 mm to 9.2 mm ropes are more suitable.
Q3. Can this machine run continuously
Yes. With proper cooling water supply and stable power conditions, it is designed for long hour industrial operation.
Q4. What is the maximum stone weight it can handle
The worktable supports up to 20 tons, suitable for large quarry blocks.
Q5. How does inverter control improve performance
It allows speed adjustment according to stone hardness and cutting depth, reducing wire wear and improving cutting efficiency.
