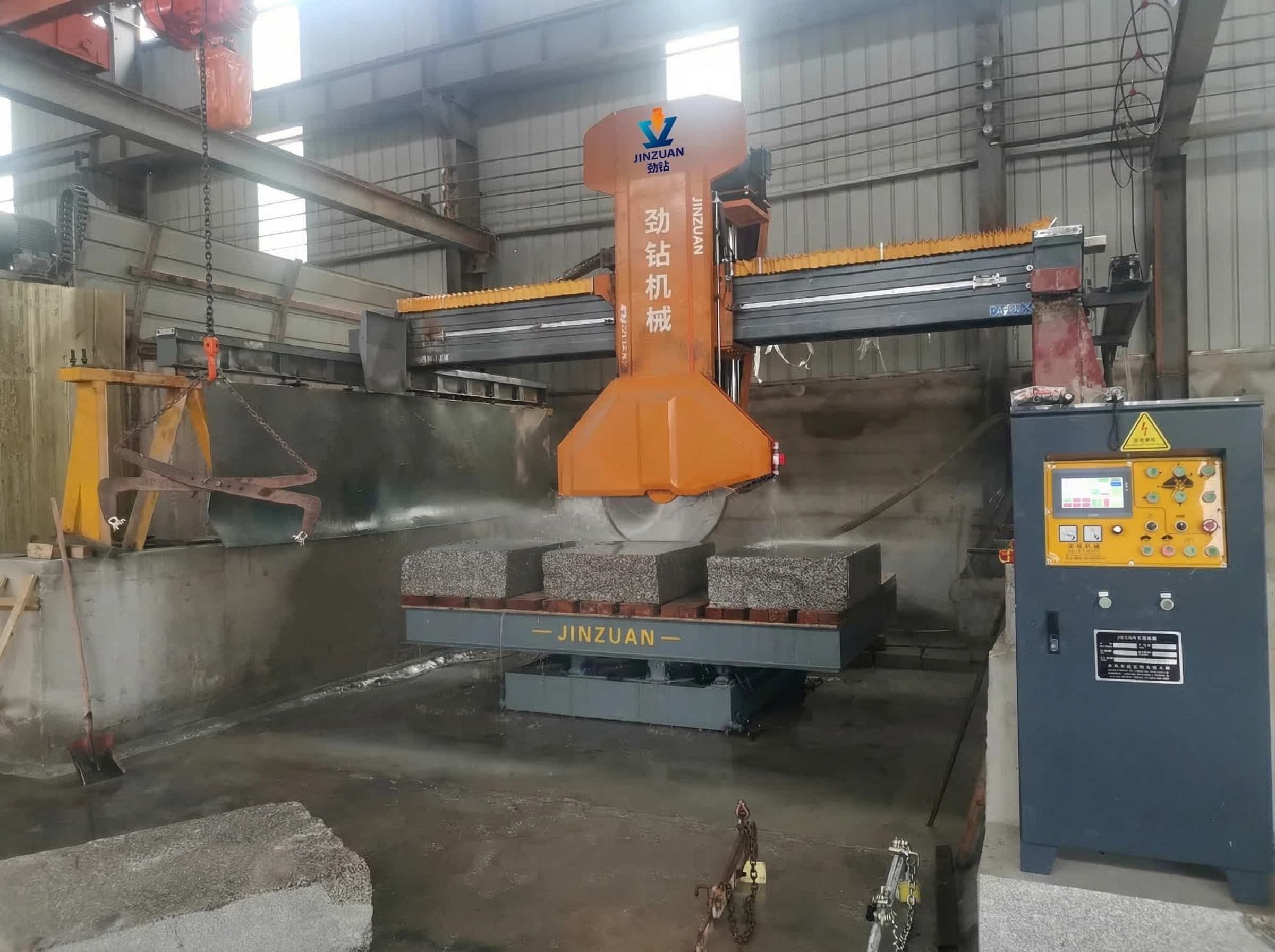

This 3 Axis Bridge Stone Cutting Machine is designed for precise and efficient cutting of medium to large stone blocks such as granite, marble, and quartz. Equipped with a heavy-duty bridge structure and intelligent control system, it ensures stable performance even during long continuous operation.
Product Model :
JZ-1200Certification :
CE, ISOSpecifications :
4700*5800*3400mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year
The 3 Axis Bridge Stone Cutting Machine combines robust mechanical design with advanced motion control technology, making it suitable for high-load stone cutting tasks. The bridge structure is reinforced to minimize vibration, ensuring cutting accuracy within ±0.1 mm even during continuous 48–72 hour operation.
With optimized energy consumption and durable components, this bridge type stone cutting machine reduces maintenance frequency while maintaining consistent output quality—an essential advantage for exporters and large-scale manufacturers.
Core Features
1). High Cutting Capacity – Supports maximum cutting depth of 150 mm and stone block dimensions up to 3200×2000×150 mm, blade diameter Φ600–1200 mm.
2). Robust Bridge Structure – Heavy-duty crossbeam (390×350×4850 mm) and solid guide posts (Φ100 mm) minimize vibration for precise cutting.
3). Powerful Motor System – Main motor 22 kW, total power 28 kW, enables stable cutting even under long continuous operation.
4). Efficient Output – Processes approximately 5 m³ of stone in 10 hours, improving factory productivity.
5). Water Cooling System – 4 m³/h water flow reduces blade wear and maintains cutting quality.
6). User-Friendly Operation – Intuitive control interface allows easy handling and fast training for operators.
Technical Parameters
| Blade | Ф 600~1200mm | ||||||
| Lifting stroke | 850mm | ||||||
| Worktable dimensions | 3200*2000mm | ||||||
| Maximum cutting depth | 150mm | ||||||
| Output | 10 hours: approx. 4,000 cm³ / approx. 5 m³ | ||||||
| Water consumption | 4m³/h | ||||||
| Weight | 6t | ||||||
| Total power | 28kw | ||||||
| Motor power | 22kw | ||||||
| Crossbeam dimension | 390*350*4850mm | ||||||
| Guide post | Ф100 | ||||||
| Maximum processing size | 3200*2000*150mm | ||||||
| Dimensions of the concrete block | 4700*1760mm | ||||||
| Overall dimension | 4700*5800*3400mm | ||||||
Applications
1). Large Block Slab Processing: Used for cutting granite and marble blocks (1–3 meters) into standard slabs with stable accuracy of ±0.1 mm during continuous 48–72 hour operation.
2). Quartz Countertop Manufacturing: Applied in precision cutting of quartz and engineered stone panels, ensuring uniform thickness and reducing secondary polishing workload by over 20%.
3). CNC Pre-Processing Preparation: Cuts raw stone blocks into standardized sizes before 4 axis or 5 axis machining, improving material utilization and reducing waste.
4). Monument and Tombstone Production: Processes large stone blocks into uniform blanks for engraving, ensuring consistent flatness and thickness for high quality finishing.
5). Construction Material Supply: Produces stone slabs for flooring, wall cladding, and building facades, supporting large scale projects with consistent batch output.
6). Export Oriented Mass Production: Designed for factories running 16–24 hours daily production, ensuring stable performance and reduced downtime for bulk international orders.
Comparison Analysis
3 Axis Bridge Cutting Machine vs Manual Cutting Machine
Accuracy: ±0.1 mm vs ±0.5 mm or higher deviation
Efficiency: Automated batch cutting vs labor-dependent operation
Stability: Continuous 48–72 hours vs frequent downtime
Labor Cost: Reduced operators vs high labor reliance
3 Axis Bridge Machine vs 5 Axis CNC Machine
Cost: Lower investment, faster ROI
Function: Focused on straight and standard cutting tasks
Complexity: Easier to operate and maintain
Best Choice For: Factories prioritizing volume cutting over complex shaping
Expert Q&A
Q1: Can the machine run continuously in high-temperature environments?
Yes, under proper cooling conditions, it can operate continuously for 48–72 hours while maintaining stable cutting accuracy.
Q2: What materials are suitable for this bridge cutting machine?
It supports granite, marble, quartz, limestone, and artificial stone, making it highly versatile for different markets.
Q3: How does it reduce blade wear?
The integrated water cooling system and stable cutting motion reduce friction, extending blade lifespan by 20%–30%.
Q4: Is it suitable for export-oriented factories?
Absolutely. Its high efficiency, stable performance, and low maintenance cost make it ideal for factories handling large export orders.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
Engineered for complex surfaces, special-shaped components, and artistic carving! The intelligent 5-axis system enables one-stop machining, transforming your concepts into reality with high efficiency and precision, significantly boosting productivity and profit margins.
Read More
The 5-axis bridge integrated cutting machine is a state-of-the-art industrial solution engineered for high-precision cutting across diverse materials. Combining a robust bridge structure with advanced 5-axis simultaneous motion technology, it delivers superior accuracy, speed, and stability for both complex shapes and large-scale cutting tasks. Equipped with intelligent CNC controls and durable components, making it a reliable choice for factories, processing plants, and fabrication workshops globally.
Read More

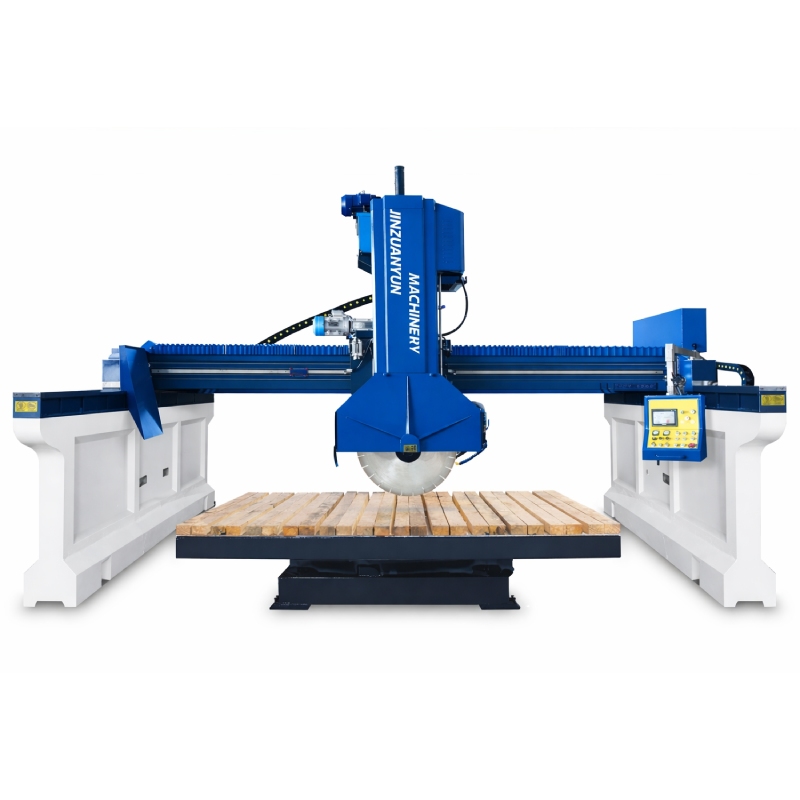

Introducing our professional 3-Axis Stone Cutting Machine—a dedicated solution engineered to redefine accuracy and efficiency in stone processing. Tailored exclusively for cutting granite, marble, limestone, and other natural stone materials, this machine leverages a stable 3-axis (X, Y, Z) motion system to deliver clean, consistent cuts across flat surfaces and linear profiles.
