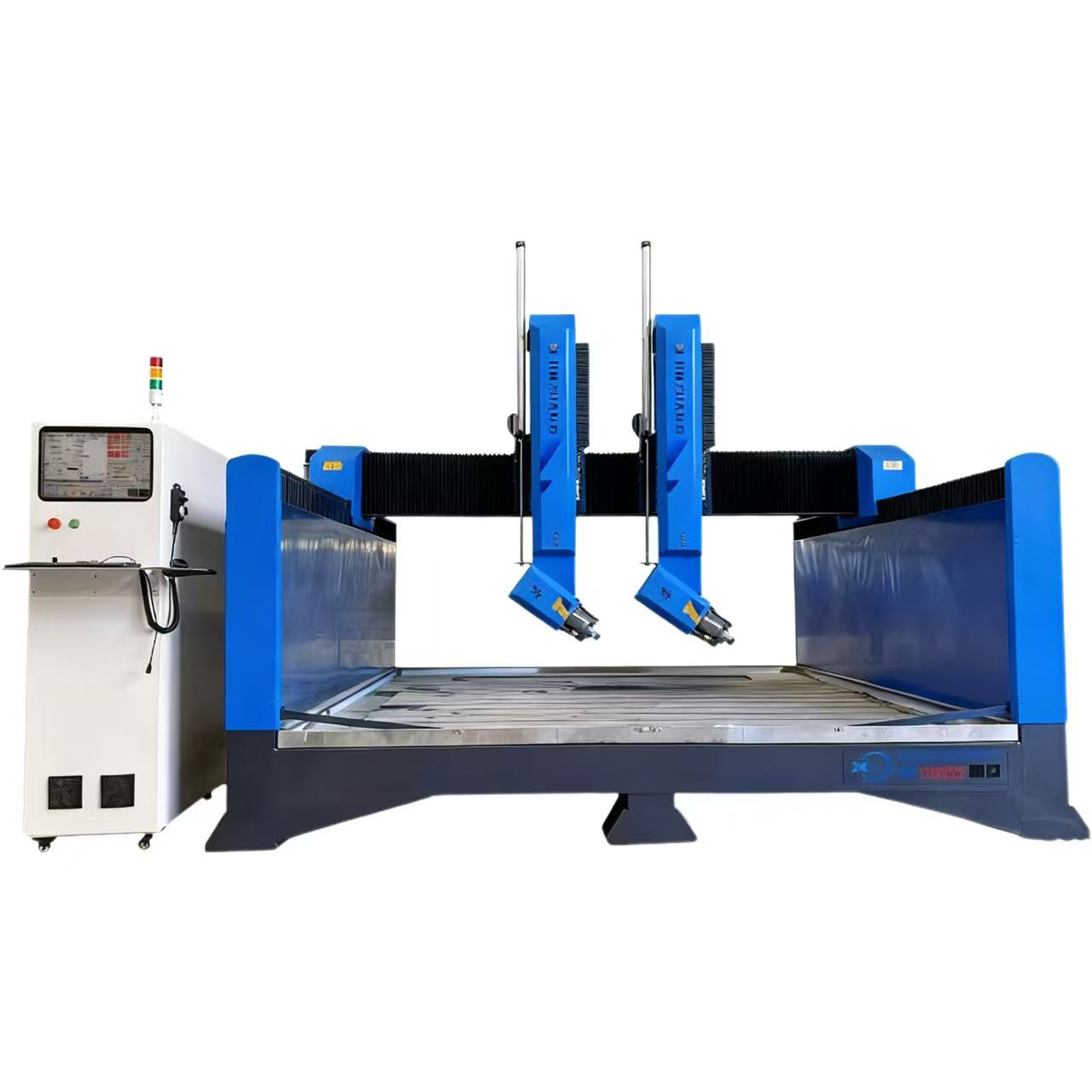

This advanced Dual 180° Swing Head Carving Machine is a revolutionary solution for complex stone work. It is engineered with two independent oscillating carving heads that pivot a full 180 degrees, enabling unparalleled access and precision.
Product Model :
JZY2030FB-2DCertification :
CE, ISOSpecifications :
3800*3000*2300Origin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year
Unlike single-head or fixed-angle machines, this equipment is equipped with two independent 180° swivel engraving heads, each capable of rotating freely across a full 180° range—effortlessly solving the pain points of large-angle carving on curved stone panels and decorative stone caps.
1).Dual 180° Swing Carving Heads: Two independent spindles with a wide 180° tilting range for multi-angle, multi-face machining without frequent repositioning of the workpiece.
2).Precision Machining for Complex Geometries: Expertly handles intricate 3D contours, deep reliefs, and undercuts on stone materials that are impossible for standard fixed-head machines.
3).Efficient Processing of Curved Slabs: Dramatically reduces production time for arched panels, cylindrical columns, and other non-flat stone surfaces by allowing continuous carving along the curve.
4).High-Quality Ornamental Carving: Perfect for creating detailed stone moldings, capitals, corbels, floral patterns, and large decorative ornaments with complex angles and shadows.
5).Robust Construction & Stability: Features a heavy-duty frame and high-quality components to ensure vibration-free operation and exceptional durability under heavy loads.
6).User-Friendly CNC Control System: Equipped with an intuitive interface for easy programming and operation, supporting complex design files and efficient toolpath management.
Technical Parameters
| Product Number | 2030FB-2D |
| Platform Dimensions | 2000*3000mm |
| Working Size | 900*2900*2mm |
| Feed Height | ≤600mm |
| Air Speed | 15m/min |
| Processing Speed | 12m/min |
| Spindle Power | 5.5-7.5kw/Motorized spindle |
| Spindle Speed | 6000-24000 rpm/min |
| Motor | AC digital servo motor |
| Reducer | JZ8098 |
| Operating Voltage | AC220V/50Hz/AC380V/50Hz |
| Engraving Tool | Φ6/8/10/12/14/16mm |
| File Format | G code/HPGL |
| Positioning Accuracy | ±0.02mm |
| Repeatability | ±0.01mm |
| Control System | Taiwan LNC |
| Machine Dimensions | 3800*3000*2300mm |
| Weight | 3200kg |

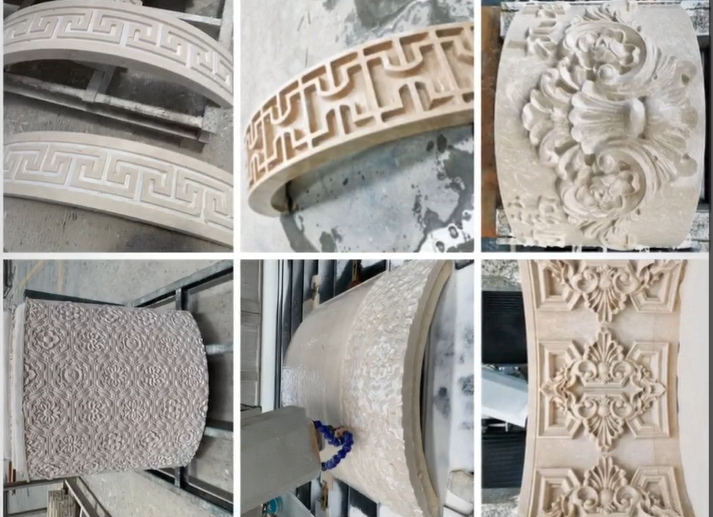

Applications
1).Architectural Stonework: Manufacturing of curved wall panels, arched window surrounds, decorative cornices, and complex structural elements for buildings.
2).Monument & Memorial Crafting: Creating elaborate 3D inscriptions, sculptures, and ornate details on granite, marble, and other memorial stones.
3).Interior Decoration & Art: Production of high-end stone furniture components, fireplace surrounds, intricate floor inlays, and artistic stone sculptures.
4).Custom Stone Components for Restoration: Precisely replicating or repairing historical stone ornaments, balustrades, and intricate details in renovation projects.
5).Landscaping & Hardscaping: Crafting custom curved stone benches, decorative fountains, and complex paving stones with detailed surface patterns.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co., Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC equipment, such as stone carving machine, four axis and five axis engraving machine, CNC machining center and three-dimensional engraving machine. With the help of perfect product production supply chain and strong technical service team, the company focuses more on the research and development of digital intelligent engraving technology, boosting the upgrading of engraving machine performance and function.
Now it has become a domestic CNC engraving machine production and export volume of enterprises, and one-time through ISO9001,CE certification, ROHS certification and BV certification, the products are sold all over the country, and exported to Europe, America, Southeast Asia, the Middle East and more than 60 countries and regions.
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
