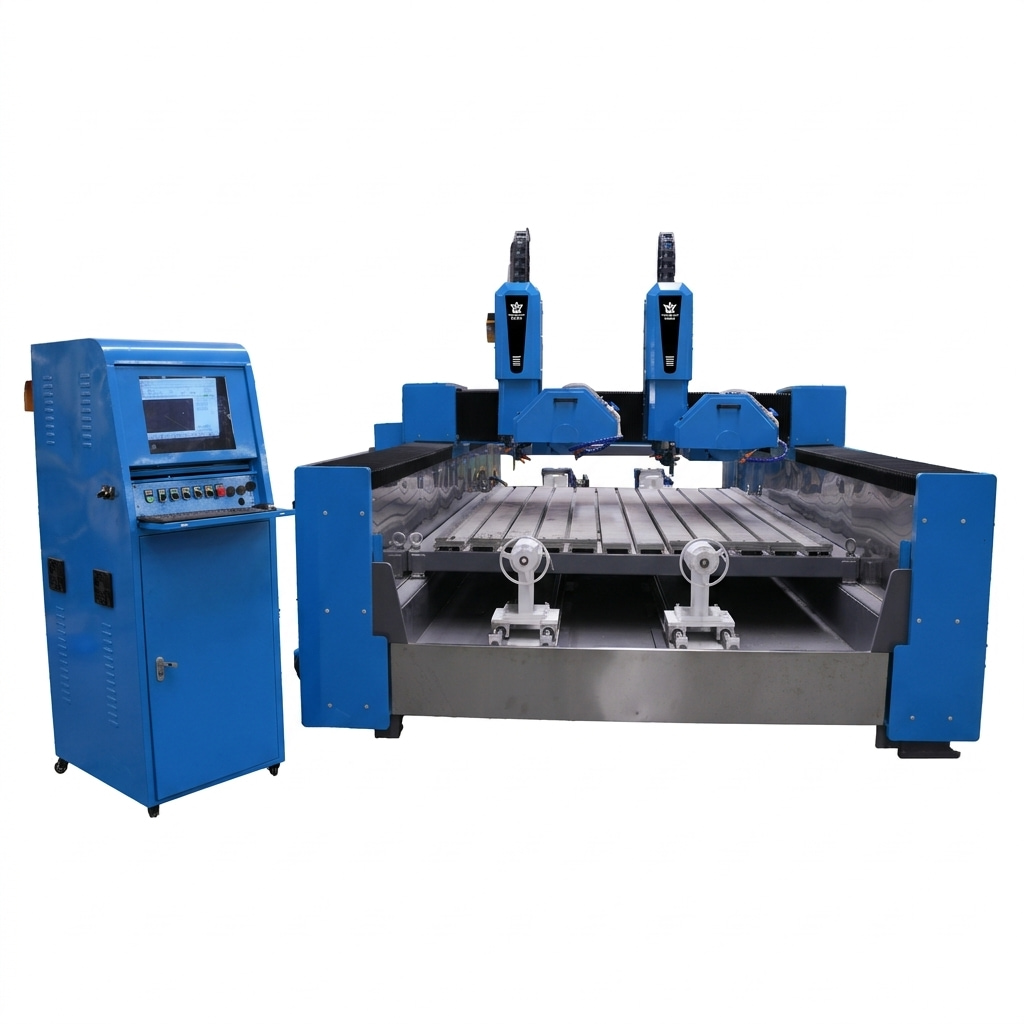

The SD-1530M-2D Multifunctional CNC Stone Carving Machine combines saw blade cutting, flat engraving, 3D relief carving, and rotary cylindrical machining in one versatile system. It is an ideal solution for producing decorative stone panels, carved columns, architectural ornaments, and customized stone products.
Product Model :
SD-1530M-2DCertification :
CE, ISOSpecifications :
5650*3100*2300mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

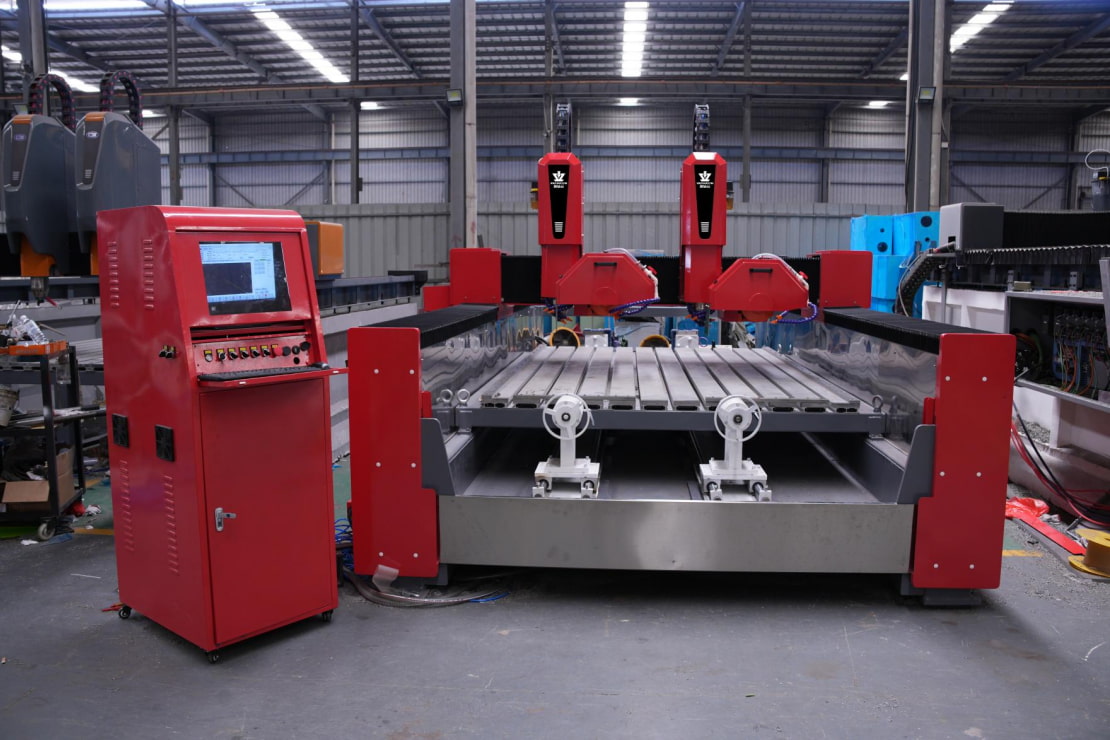

The SD-1530M-2D Multifunctional CNC Stone Carving and Cutting Machine is designed for stone workshops that need greater machining flexibility across different product shapes. Unlike conventional CNC stone routers primarily used for flat engraving, this machine integrates a saw blade cutting unit, a precision carving spindle, and a rotary axis to accommodate flat surfaces, three-dimensional reliefs, and cylindrical stone workpiece
Built with a heavy-duty welded steel frame, thickened steel beam, servo-driven transmission, and automatic lubrication system, the SD-1530M-2D provides a structural foundation for demanding stone machining operations.For stone manufacturers handling diverse customer orders, the SD-1530M-2D offers a practical way to combine multiple machining processes within one equipment platform, reducing the need to purchase separate machines for every product category.
Core Features

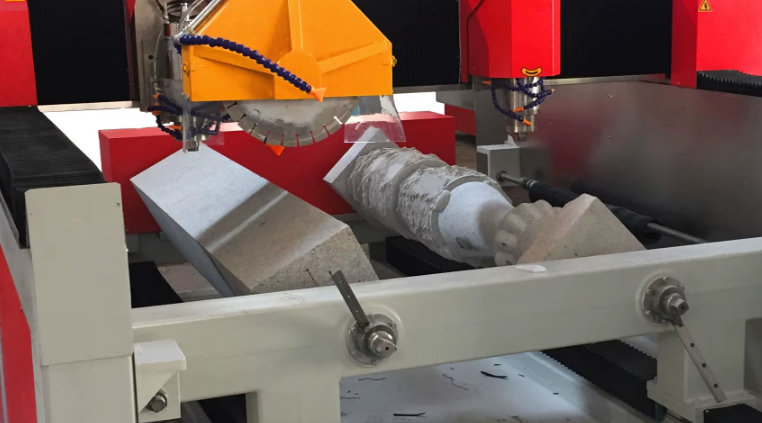

1. Integrated Saw Blade Cutting: The 11kW saw blade spindle performs stone cutting, trimming, and preliminary shaping, helping operators prepare workpieces for subsequent carving operations.
2. Precision Flat Surface Engraving: The 5.5kW carving spindle creates lettering, decorative grooves, geometric patterns, and customized designs on flat stone surfaces, making it suitable for signs, plaques, and ornamental slabs.
3. Three-Dimensional Relief Carving: Processes raised floral motifs, decorative figures, architectural patterns, and layered surface designs on stone workpieces, with a specified relief machining capacity of 1500 × 2500 × 350mm.
4. Rotary Cylindrical Stone Carving: The integrated rotary axis rotates cylindrical workpieces during engraving, enabling continuous decorative patterns around stone columns, pillars, and other round components up to Ø600mm in diameter and 3500mm in specified processing length.
Technical Parameters
| Platform dimension | 1500*3000mm | ||||||
| Feed height | ≤400mm | ||||||
| Workpiece size | 3500xφ600 mm for Cylindrical；1500*2500*350mm for relief | ||||||
| Air speed | 20m/min | ||||||
| processing speed | 20m/min | ||||||
| Engraving spindle power | 5.5kw | ||||||
| Blade Saw spindle power | 11kw | ||||||
| Fastest moving speed | 30000 mm/min | ||||||
| Spindle speed | 6000~24000rpm/min | ||||||
| Operarting voltage | AC220V/50Hz or AC380V/50Hz | ||||||
| Weight | 3500kg | ||||||
| Bed | Heavy-duty square tube welded frame,Stainless Steel | ||||||
| Beam | Thickened bridge steel | ||||||
| Guide rail | XY axis:30mm square guide rails,Z axis:25mm square fyude rails |
||||||
| Transmission method |
X and Y reducers + servo motor drive, Z-axis lead screw drive,A-axis dual motor | ||||||
| System | 4-axis handle system | ||||||
| X-axis installation | Special rear-mounted design,Steel Structure,Electroplated Surface | ||||||
| Drive&Motor | 1.5KW Digital Full AC Servo | ||||||
| Code | HZG code.*u00.*mmg.*olt | ||||||
| Positioning accuracy | ±0.03 mm | ||||||
| Repeat positioning accuracy | ±0.02 mm | ||||||
| Feed rate | 20m/min | ||||||
| Cutting speed | 20m/min | ||||||
| Dimension | 5650*3100*2300mm | ||||||
| Carving tools | φ1-16mm | ||||||
| File Format | G code | ||||||
| Lubrication | Automatic Lubrication System | ||||||
Applications
Why Choose a Multifunctional Stone Carving Machine?
|
Comparison |
Conventional 3-Axis Stone Carving Machine |
SD-1530M-2D Multifunctional Machine |
|---|---|---|
|
Flat Engraving |
Yes |
Yes |
|
3D Relief Carving |
Yes |
Yes |
|
Saw Blade Cutting |
Usually requires a separate cutting unit |
Integrated 11kW saw blade spindle |
|
Cylindrical Carving |
Requires an optional rotary attachment |
Equipped with rotary axis |
|
Working Heads |
Usually engraving spindle only |
Cutting and carving spindles |
|
Product Variety |
Mainly flat and relief workpieces |
Flat panels, reliefs, and cylindrical components |
|
Workshop Application |
Dedicated engraving production |
Mixed stone cutting and carving orders |
A conventional 3-axis CNC stone carving machine is often sufficient for workshops primarily producing flat engravings and relief panels. However, manufacturers receiving orders for stone cutting, decorative panels, and cylindrical columns may benefit from a multifunctional configuration.
The SD-1530M-2D combines these capabilities within one machine, making it particularly suitable for workshops with varied product requirements. Its main advantage is processing versatility rather than replacing every specialized cutting or carving machine.
Expert Q&A
Q1: Can the SD-1530M-2D cut and carve stone with the same machine?
Yes. The machine is equipped with an 11kW saw blade spindle for cutting operations and a 5.5kW carving spindle for engraving and relief machining. Operators can use the appropriate unit according to the workpiece and processing requirements.
Q2: Can this CNC stone carving machine engrave cylindrical columns?
Yes. The integrated rotary axis allows cylindrical stone workpieces to rotate during carving. The specified cylindrical machining capacity is 3500 × Ø600mm, making it suitable for decorative stone pillars and columns within the machine's loading and machining limits.
Q3: What is the maximum relief carving size?
The specified maximum relief workpiece size is 1500 × 2500 × 350mm. Actual usable dimensions may depend on the workpiece shape, fixture arrangement, tool length, and machining setup.
Q4: Is this multifunctional stone CNC machine suitable for small stone workshops?
It can be a practical option for workshops handling different types of stone orders, particularly those involving flat engraving, relief panels, and decorative columns. Combining cutting and carving capabilities may reduce dependence on multiple dedicated machines, although actual floor-space and investment savings depend on the production setup.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
