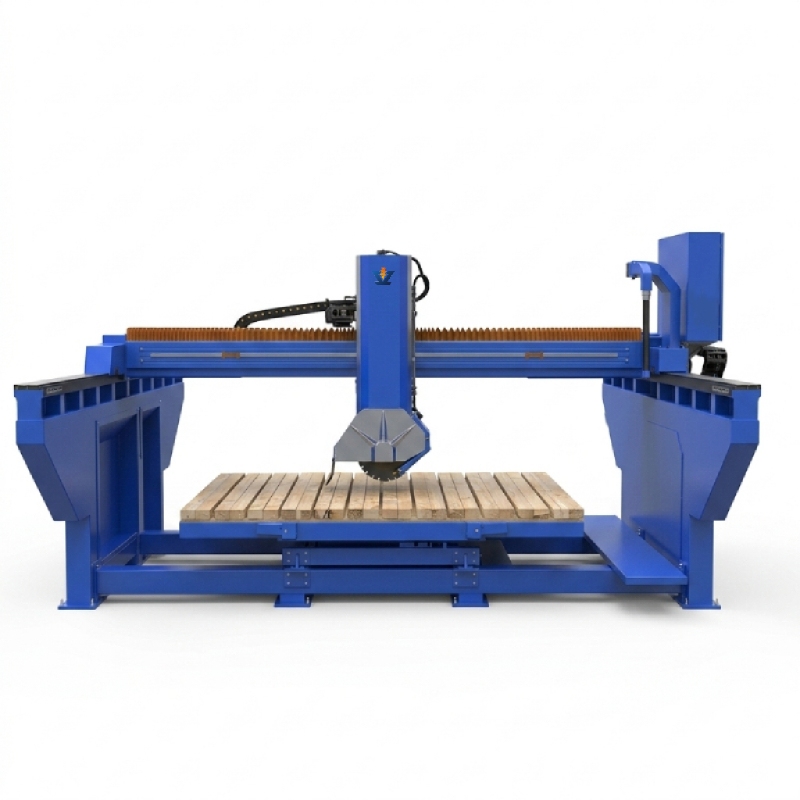

The Tiltable Bridge Cutting Machine is designed for high-precision cutting of marble, granite, quartz, and other stone materials. With a tiltable cutting head that swings along the bridge beam from 0° to 45°, this machine enables flexible straight cutting, bevel cutting, and angle processing for various stone fabrication requirements.
Product Model :
JZ-600TCertification :
CE, ISOSpecifications :
6000x5000x2600mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

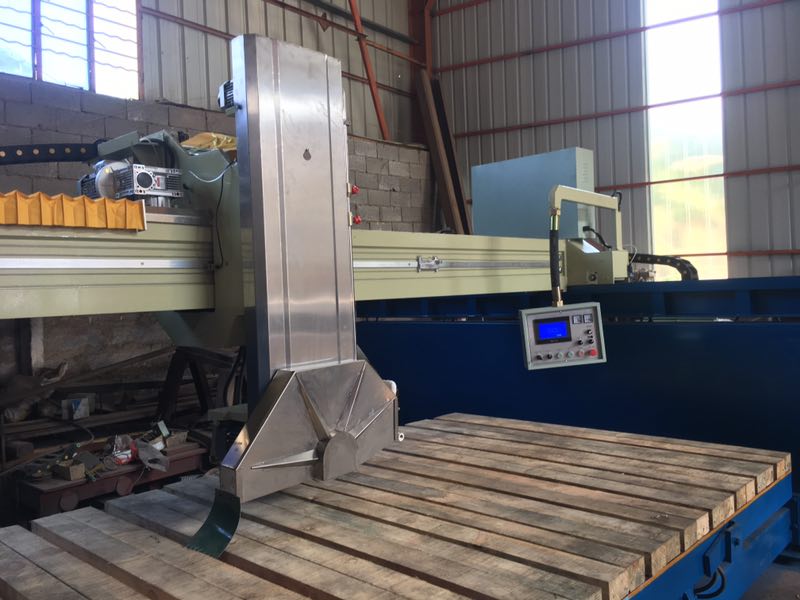

The CNC Tiltable Bridge Cutting Machine combines a rigid bridge structure with a swing-type cutting head design, allowing the entire cutter head to rotate smoothly around the crossbeam for multi-angle stone cutting. Unlike traditional bridge saws that mainly perform vertical cutting, this tiltable stone cutting machine provides greater flexibility for 45-degree miter cuts, edge trimming, countertop fabrication, and customized stone projects.
Equipped with an 18.5kW main motor and 400-600mm diameter blade capacity, the machine delivers stable cutting performance on thick marble slabs, granite blocks, quartz countertops, and architectural stone panels. The working table supports 90° rotation and 0-85° tilting, helping operators easily position large stone pieces for efficient processing.
Core Features
1. Flexible Angle Cutting: Tiltable Cutting Head Design: The complete cutting head swings along the bridge beam, enabling 0°-45° blade rotation for vertical cutting, bevel cutting, and miter cutting to meet customized stone processing needs.
2. Large Cutting Capacity: Processing Various Stone Slabs: Supports up to 3200×2000×170mm working size with 400-600mm blades, suitable for large marble, granite, quartz, and artificial stone cutting.
3. Efficient Stone Positioning: Rotary & Tilting Worktable: The worktable supports 90° rotation and 0-85° tilting, making heavy stone positioning easier and improving cutting efficiency for complex shapes.
4. Stable Cutting Performance: Heavy-Duty Bridge Structure: The rigid bridge structure reduces vibration during operation, ensuring consistent accuracy and reliable performance for long-term production.
5. Powerful Cutting Ability: High-Torque Motor System: Equipped with an 18.5kW main motor, providing strong cutting power for hard materials while balancing speed, blade life, and surface quality.
Technical Parameters
| Max.working dimensions(LxWxH) | 3200x2000x170mm | ||||||
| Max.diameter of blade | 400-600mm | ||||||
| Table dimensions(LxW) | 3000X2000mm | ||||||
| Table rotating degree | 90° | ||||||
| Table tilting degree | 0-85° | ||||||
| Cutter head rotating degree | 0°-45° | ||||||
| Power of main motor | 18.5kw | ||||||
| Water consumption | 3m³/h | ||||||
| Dimension(LxWxH) | 6000x5000x2600mm | ||||||
| Weight 重量 | 6400kg | ||||||

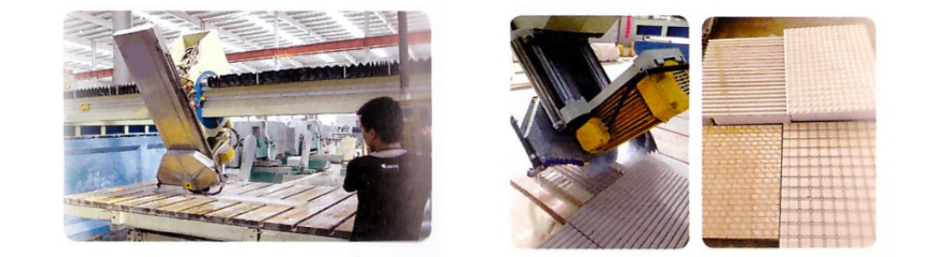

Applications
Why Choose a Tiltable Bridge Cutting Machine?
Fixed Bridge Saw vs Tiltable Bridge Cutting MachineExpert Q&A
Q1: What materials can a tiltable bridge cutting machine cut?
A: It can cut marble, granite, quartz, artificial stone, limestone, and other stone materials commonly used in countertops, construction, and decoration industries.
Q2: What is the difference between a tiltable bridge saw and a normal bridge saw?
A: A normal bridge saw usually performs vertical cutting only, while a tiltable bridge cutting machine allows the entire cutting head to rotate from 0° to 45°, enabling bevel cuts and angled stone processing.
Q3: Can this machine cut 45-degree stone edges?
A: Yes. The tiltable cutter head supports 0°-45° rotation, making it suitable for 45-degree miter cuts used in countertop fabrication and architectural stone projects.
