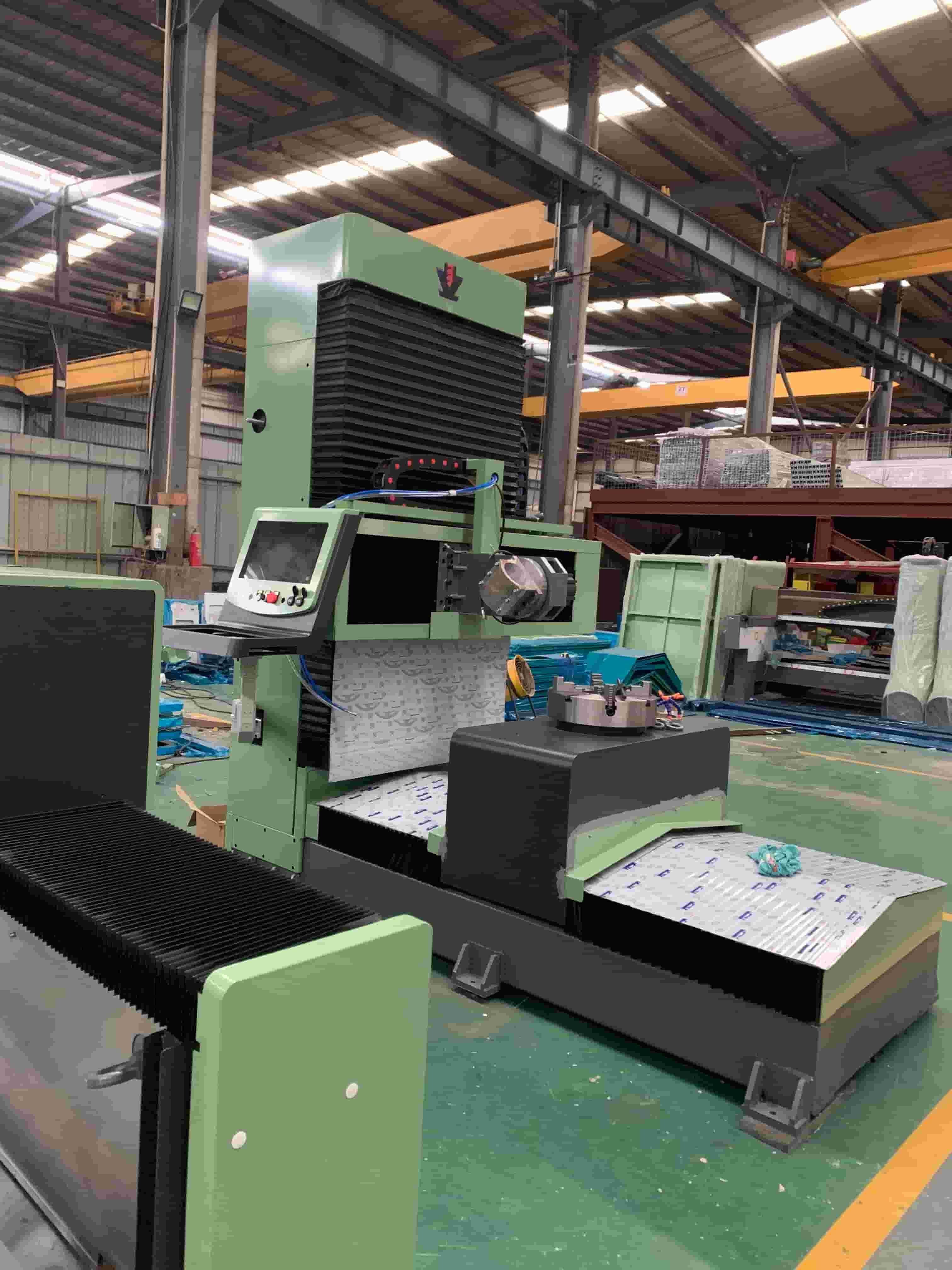

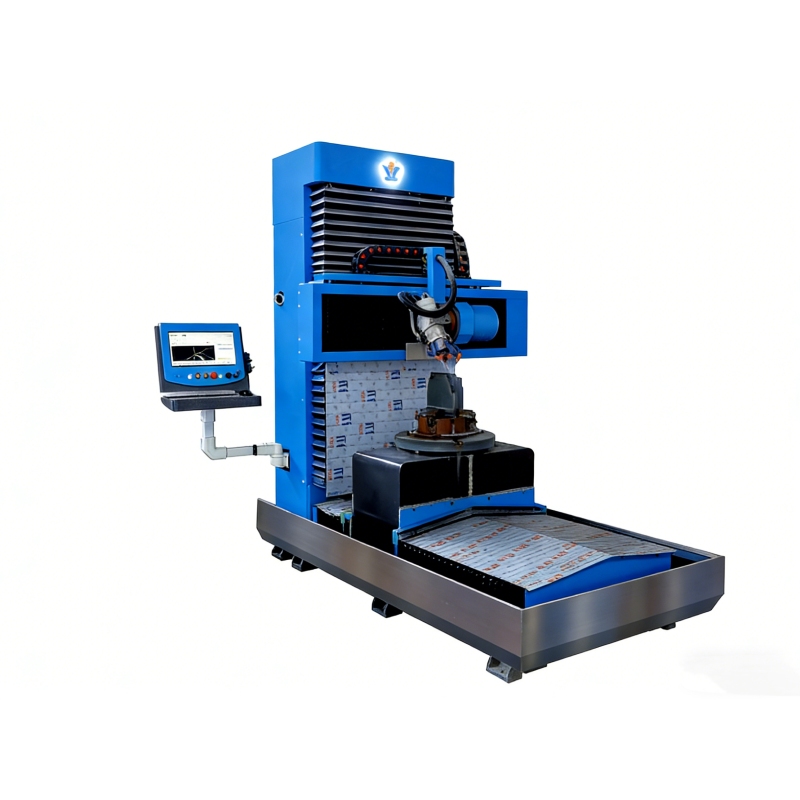

Compact Vertical 5 Axis CNC Engraving Machine for Precision Stone and Sculpture
This compact vertical 5 axis CNC engraving machine is designed for workshops that require high-precision 3D machining with minimal floor space.
Product Model :
XJ-VS500Certification :
CE, ISOSpecifications :
2600x1700x2700mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year
With a 500 × 500 × 500 mm workpiece capacity, ±0.01 mm repeatability, and a B-axis ±110° + C-axis ±570° continuous rotation, it delivers complex multi-angle engraving in a footprint significantly smaller than traditional bridge-type machines.
Powered by a 7.5 kW high-speed spindle (24,000 rpm) and full AC digital servo system, the machine maintains stable accuracy even during long continuous operation.
It is an ideal solution for stone sculpture studios, art workshops, prototype labs, and high-value customized carving.
Core Features
1. True 5-Axis Simultaneous Machining
①B-axis tilting range: ±110° enables deep undercut and complex surface engraving
②C-axis rotation: ±570° (actually unlimited) allows continuous multi-directional carving
③Eliminates manual repositioning, improving surface consistency and efficiency
Why it matters:
Compared with 3-axis or 4-axis machines, true 5-axis machining reduces secondary clamping and improves 3D detail accuracy by over 30–40% in complex sculptures.
2. High-Speed Precision Spindle System
①Spindle power: 7.5 kW
②Spindle speed: up to 24,000 rpm
③Optimized for fine stone detailing, relief carving, and smooth surface finishing
Performance evidence:
During continuous engraving tests, the machine maintains ±0.01 mm repeatability even under high-speed tool paths.
3. Compact Vertical Structure with Small Footprint
①Machine dimensions: 2600 × 1700 × 2700 mm
②Vertical design saves 30–50% floor space compared to traditional gantry-type 5-axis machines
Ideal for:
Urban workshops, art studios, exhibition factories, and customers with limited installation space.
4. Full AC Digital Servo Drive System
①1.5 kW Full AC Digital Servo Motors (X/Y/Z/B/C)
②Faster response, smoother motion, and higher positioning stability
③Positioning accuracy: 0.02 mm
④Repeat positioning accuracy: 0.01 mm
Compared to stepper motor systems:
①Higher torque at high speed
②No step loss during long operation
③Better surface finish on curved 3D models
5. Stable Long-Time Operation Capability
①Machine weight: 2000 kg, providing strong vibration absorption
②Designed for continuous 72-hour operation without loss of accuracy
③Suitable for batch production and long engraving cycles
Technical Parameters
| Product Number | XJ-VS500 |
| Workpiece size | 500x500x500mm |
| Feed height | <500mm |
| Air speed | 30000mm/min |
| Processing speed | 12000mm/min |
| Spindle power | 7.5kw |
| Spindle speed | 24000rpm/min |
| Positioning Accuracy | 0.02 mm |
| Repeat Positioning Accuracy | 0.01 mm |
| B axis Tilting Degree | ±110° |
| C axis Tilting Degree | ±570°(Actually unlimited） |
| Operating Voltage | AC220V/50Hz or AC380V/50Hz |
| System | NcStudio |
| Drive | 1.5KW NC Digital Full AC Servo |
| Motor | 1.5KW NC Digital Full AC Servo |
| weight | 2000kg |
| Overall Dimension | 2600x1700x2700mm |

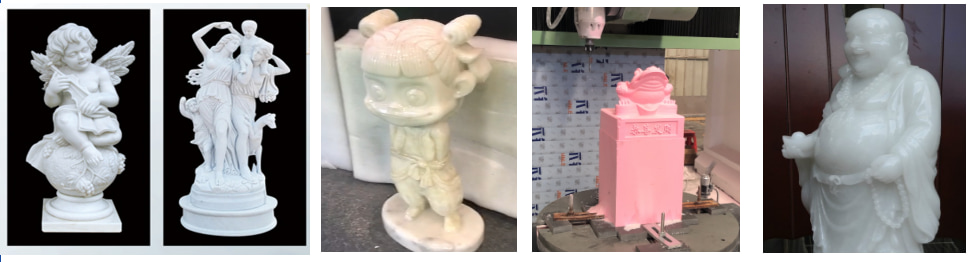

Applications
1). Stone Sculpture and Artistic Carving: Ideal for producing 3D stone statues, figurative sculptures, and relief artworks, where multi-angle detailing and undercut processing are required.
2). Religious and Cultural Projects: Suitable for carving Buddha statues, temple reliefs, and cultural monuments, achieving consistent symmetry and fine surface detail across complex forms.
3). High-End Architectural Decoration: Used for manufacturing decorative stone columns, capitals, and customized interior stone elements with complex curves and multi-surface machining.
4). Customized and Small-Batch Production: Designed for workshops handling one-off or small-batch customized orders, where fast setup, high accuracy, and flexible 5-axis machining are essential.
5). Prototype and Design Studio Applications: Widely applied in stone prototype development and design verification, enabling rapid iteration of complex 3D models within a compact workshop space.
Expert Q&A
Q1: Can this machine handle continuous long-time engraving?
Yes. With a 2000 kg reinforced structure and full AC servo system, it can operate continuously for 72 hours while maintaining ±0.01 mm repeatability.
Q2: Is this machine suitable for small workshops?
Absolutely. Its compact vertical structure significantly reduces floor space requirements, making it ideal for workshops with limited installation area.
Q3: What materials can be processed?
Mainly natural stone, artificial stone, marble, granite, and similar hard materials used in sculpture and architectural decoration.
Q4: How does it compare with a 3-axis engraving machine?
Compared with 3-axis machines, this 5-axis system enables complex 3D surfaces, deep cavities, and undercut details without manual repositioning, improving efficiency and consistency.
Q5: Is the machine suitable for export markets?
Yes. The machine supports AC220V / 50Hz or AC380V / 50Hz, meeting common international electrical standards.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
