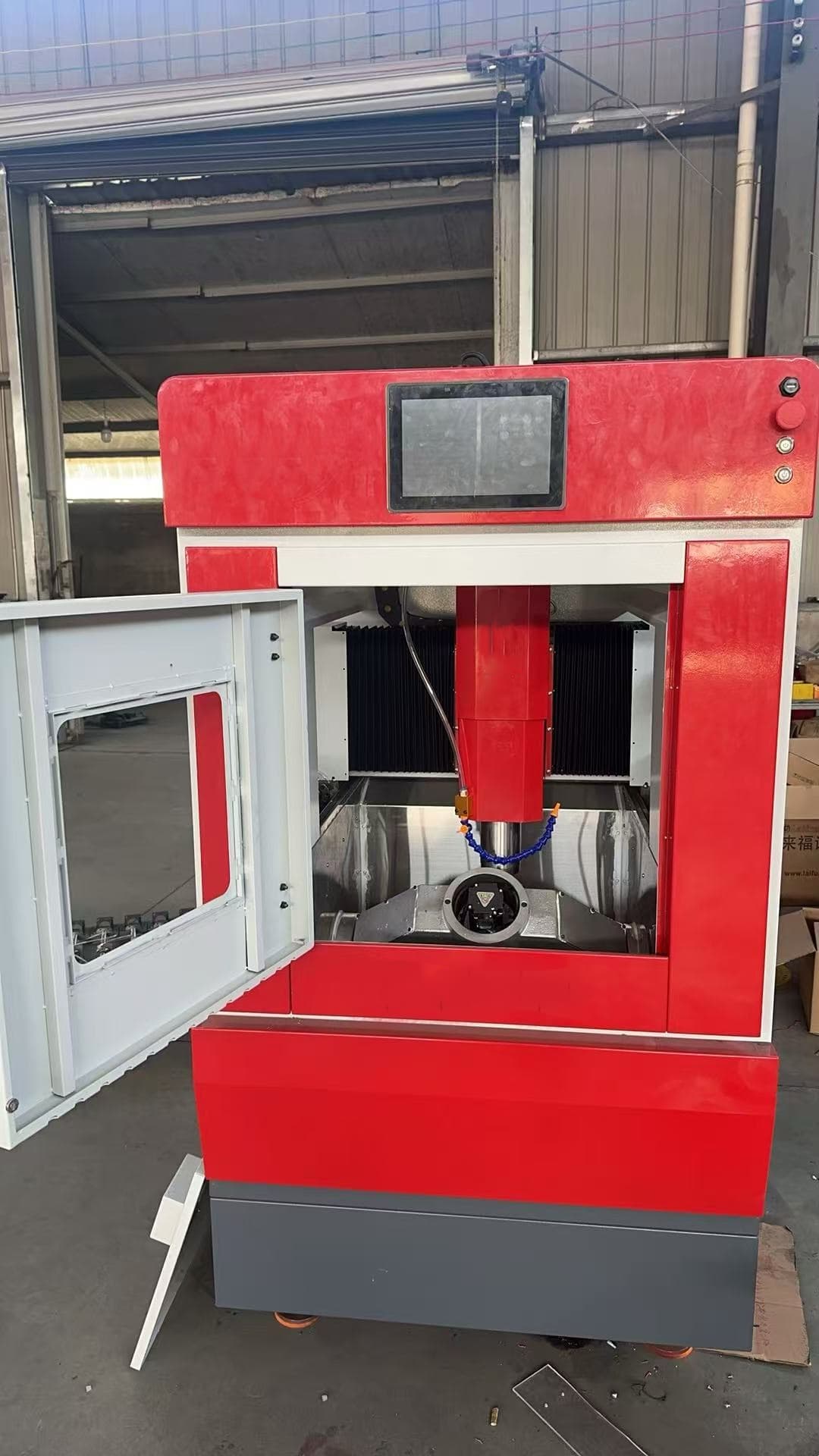

Small Five-Axis Stone Carving Machine for Detailed Jade Engraving and Sculpting
Unlock unparalleled creative freedom with the latest generation of compact 5-axis CNC engraving machines, specifically engineered for the intricate world of jade, gemstone, and hard stone processing. Unlike standard 3-axis routers that struggle with undercuts, this five-axis linkage technology allows for complete machining of complex geometries in a single setup.
Product Model :
JZY-500Certification :
CE, ISOSpecifications :
985*960*1780mmOrigin :
QuanzhouPort :
XiamenSamples Available :
NoAfter-Sales Service :
ProvideWarranty Period :
1 Year

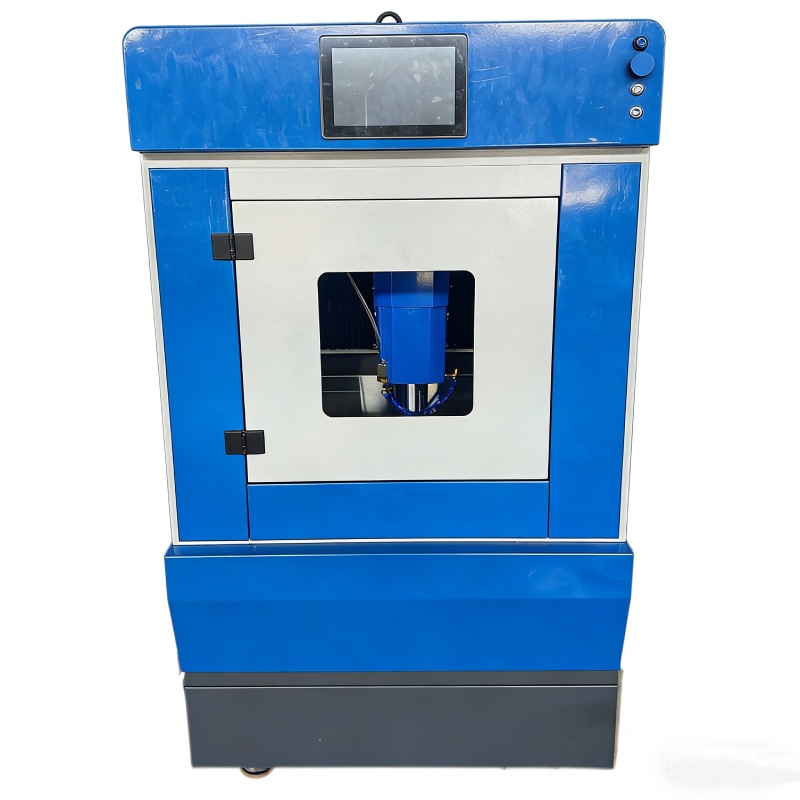

The compact five-axis stone carving machine is engineered to meet the demanding requirements of high-precision jade carving. This machine combines cutting-edge technology with compact design to allow artisans and small workshops to achieve intricate designs with remarkable accuracy.
Its five-axis system offers exceptional flexibility in carving complex shapes, making it perfect for small jade pieces. With features such as a 4kW spindle and up to 40,000 rpm, this machine delivers superior carving and engraving performance for professionals in the jade and gemstone industries.
Core Features
1). High Precision for Intricate Details: The machine offers an X/Y/Z axis motion positioning accuracy of 0.05mm, and a repeat positioning accuracy of 0.02mm, ensuring high precision for detailed jade carvings.
2). Advanced Spindle Performance: With a powerful 4kW spindle capable of reaching up to 40,000 rpm, this machine can handle intricate carving tasks quickly without compromising on detail or quality.
3). Flexible and Compact Design: The machine’s working stroke of 360mm (X-axis), 260mm (Y-axis), and 220mm (Z-axis), along with a 120°/360° rotary A/C axis, provides flexibility for both detailed designs and larger jade pieces, all within a compact structure weighing only 900kg.
4). Durable and Efficient Drive System: The bus servo drive system ensures smooth operation, allowing continuous, high-precision work in jade and gemstone sculpting.
5). Reliable Control and Material Handling: The machine is powered by a NcStudio five-axis control system, offering reliability in controlling each movement and ensuring high-level consistency in carving.
6). Versatile for Small and Complex Designs: With a maximum working weight capacity of 20kg and a chuck diameter of 125mm, this machine is ideal for detailed work on small jade objects like jewelry pieces, figurines, and intricate art pieces.
Technical Parameters
| X/Y/Z axis motion positioning accuracy | 0.05/0.05/0.05mm |
| Positioning accuracy of A/C-axis motion | 0.05° |
| X/Y/Z-axis repeatable positioning accuracy | 0.02/0.02/0.02mm |
| Repeat positioning accuracy of A/C axis | 0.02° |
| X/Y/Z axis working stroke | 360/260/220mm |
| A/C-axis rotary angle | 120°/360 |
| Processing size*Height | Diameter 210*Height 190mm |
| Maximum working weight | 20kg |
| Spindle power/maximum speed | 4KW/40000rpm |
| Shank specification | ISG20 |
| Chuck diameter | 125mm |
| X/Y/Z Maximum feed rate | 6m/min |
| A/C Maximum feed rate | 20/25rpm |
| Drive system | Bus servo (absolute) |
| Working voltage | Three-phase 380V/50Hz |
| Air pressure | ≥0.55MPa |
| Material | Integral cast iron, sheet metal |
| Total weight of machine | about 900KG |
| Total machine power | 5KW |
| Control system | NcStudio five-axis control system |
| Machine size | 985*960*1780mm |
Applications
1). Jade Jewelry Production: Suitable for precision carving of jade bracelets, pendants, beads, rings, and other small luxury jewelry.
2). Custom Jade Crafts and Artwork: Ideal for carving Buddha statues, zodiac figures, and traditional cultural jade products.
3). Personalized Gifts and Souvenirs: Supports small-batch customization such as name engraving, logo carving, and tourism souvenirs.
4). High-End Collectible Jade Products: Ensures consistent quality and fine detail for limited-edition jade artworks and collections.
5). Gemstone and Semi-Precious Material Processing: Can process agate, crystal, quartz, and other delicate materials with stable precision.
6). Miniature Sculpture and 3D Relief Carving: Five-axis linkage enables multi-angle cutting for complex small sculptures.
Comparison Analysis: 5 Axis vs Traditional Machines
1). Compared with 3 axis machines:
5 axis carving can process complex surfaces in one setup, while 3 axis requires repeated repositioning, increasing time and error.
2). Compared with 4 axis machines:
4 axis machines are suitable for simple rotary carving, but 5 axis machines handle deeper angles, undercuts, and detailed sculpture.
3). Compared with manual carving:
CNC carving ensures stable quality, faster production, and reduces labor costs, especially for bulk or high-precision orders.
Expert Q&A
Q1: What is the main advantage of a small 5 axis jade carving machine?
A: It allows full-angle engraving and complex 3D shaping in one process, improving efficiency and surface quality.
Q2: Can beginners operate this machine easily?
A: Yes. The intelligent control system and training support help new users quickly master operation within a short time.
Q3: How long can the machine run continuously?
A: The machine is designed for 24–72 hours of continuous operation with stable precision and low vibration.
Q4: Is it suitable for customized production?
A: Absolutely. It is ideal for personalized jewelry and artistic carving with flexible design capability.
Q5: What materials can be processed besides jade?
A: Agate, crystal, quartz, marble, and other small stone materials.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
